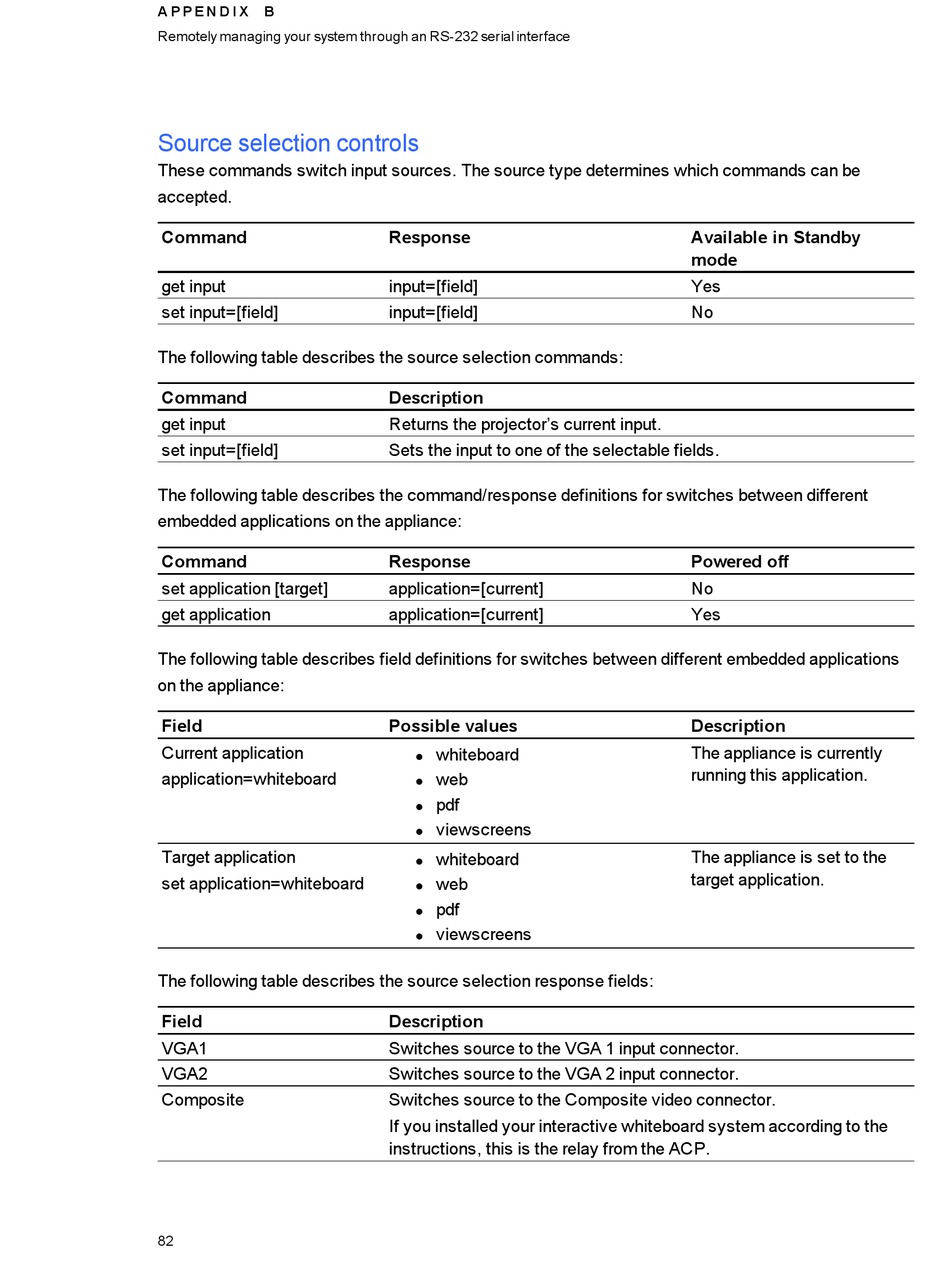

A P P E N D I X B
Remotely managing your system through an RS-232 serial interface

Source selection controls

These commands switch input sources. The source type determines which commands can be
accepted.
Command
get input
set input=[field]
The following table describes the source selection commands:
Command
get input
set input=[field]
The following table describes the command/response definitions for switches between different
embedded applications on the appliance:
Command
set application [target]
get application
The following table describes field definitions for switches between different embedded applications
on the appliance:
Field
Current application
application=whiteboard
Target application
set application=whiteboard
The following table describes the source selection response fields:
Field
VGA1
VGA2
Composite
82
Response
input=[field]
input=[field]
Description
Returns the projector's current input.
Sets the input to one of the selectable fields.
Response
application=[current]
application=[current]
Possible values
whiteboard
l
web
l
pdf
l
viewscreens
l
whiteboard
l
web
l
pdf
l
viewscreens
l
Description
Switches source to the VGA 1 input connector.
Switches source to the VGA 2 input connector.
Switches source to the Composite video connector.
If you installed your interactive whiteboard system according to the
instructions, this is the relay from the ACP.
Available in Standby
mode
Yes
No
Powered off
No
Yes
Description
The appliance is currently
running this application.
The appliance is set to the
target application.
