Upgrading The Hard Disk In Bay Two - EUROCOM 8880 Dream Machine User Manual

Upgrading The Computer

Upgrading the Hard Disk in Bay Two

If you wish to upgrade or replace the hard disk installed in the mod-
ular bay (Bay Two) on the left/rear (as you look at the left side of
the computer) follow the same procedure as "Upgrading the Pri-
mary Drive Bay (Bay One) CD Device" on page 7 - 3 . In this case
remove the screw at position " 1 " , and push the assembly out from the
area indicated by the arrow (there is no need to remove the battery in
this case).
1

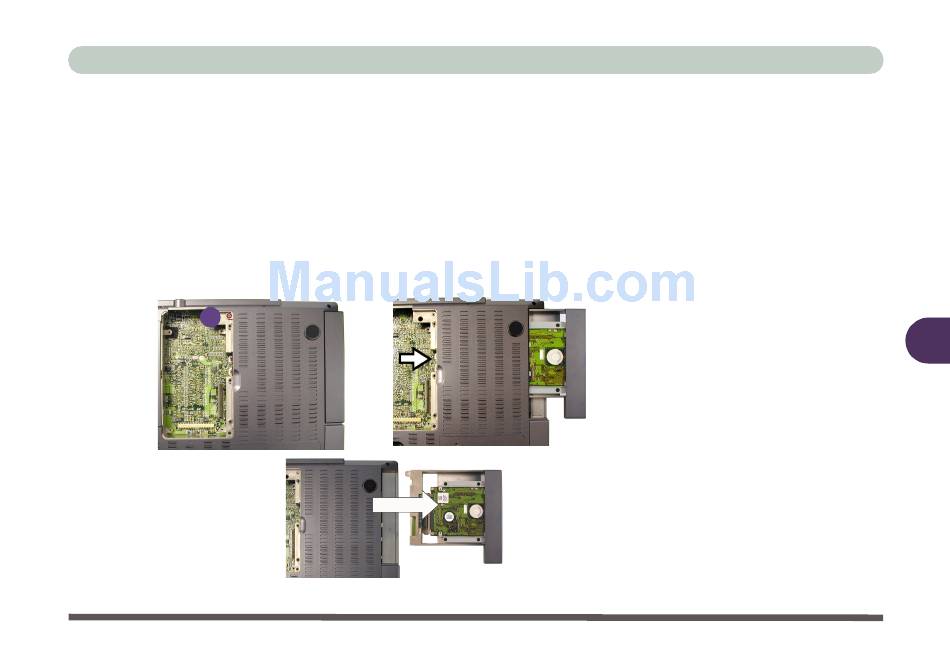

Figure 7 - 8
7
Modular Bay
Device Removal
Upgrading the Hard Disk in Bay Two 7 - 11
