5. Carefully insert the TV tuner module into the computer, aligning
the rear of the TV tuner with the hole at point "1" (see sidebar).
6. The TV Tuner module should align with the connecting pins at
point "2" (push firmly down to make sure the module is secure).
7. Secure the model by inserting screws "3 - 6".
8. Insert the cable connector "7" into the module.
9. Replace the changeable drive bay cover and three screws.
10. Insert the cable/aerial "8" into the connector.
7
1
3 4
2
6 5
8
Options
Cover
If the hole in the com-
puter case has a cover
which prevents you
from pushing the rear
of the TV tuner card
through, you can re-
move it. This can be
done by carefully
pushing the cover out
with a screwdriver.

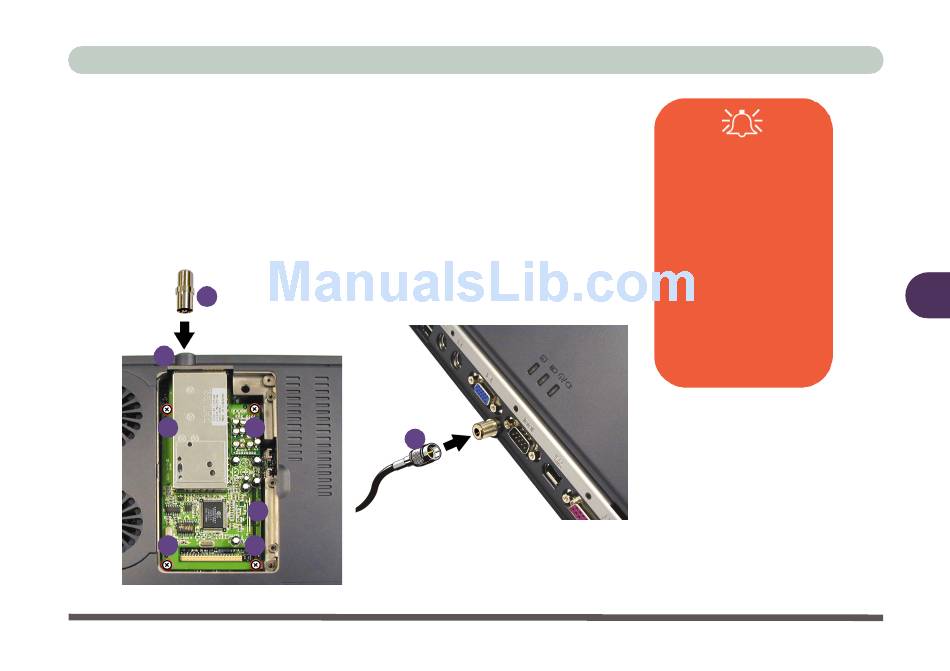

Figure 6 - 7
TV Tuner Module
Insertion
TV Tuner 6 - 9
