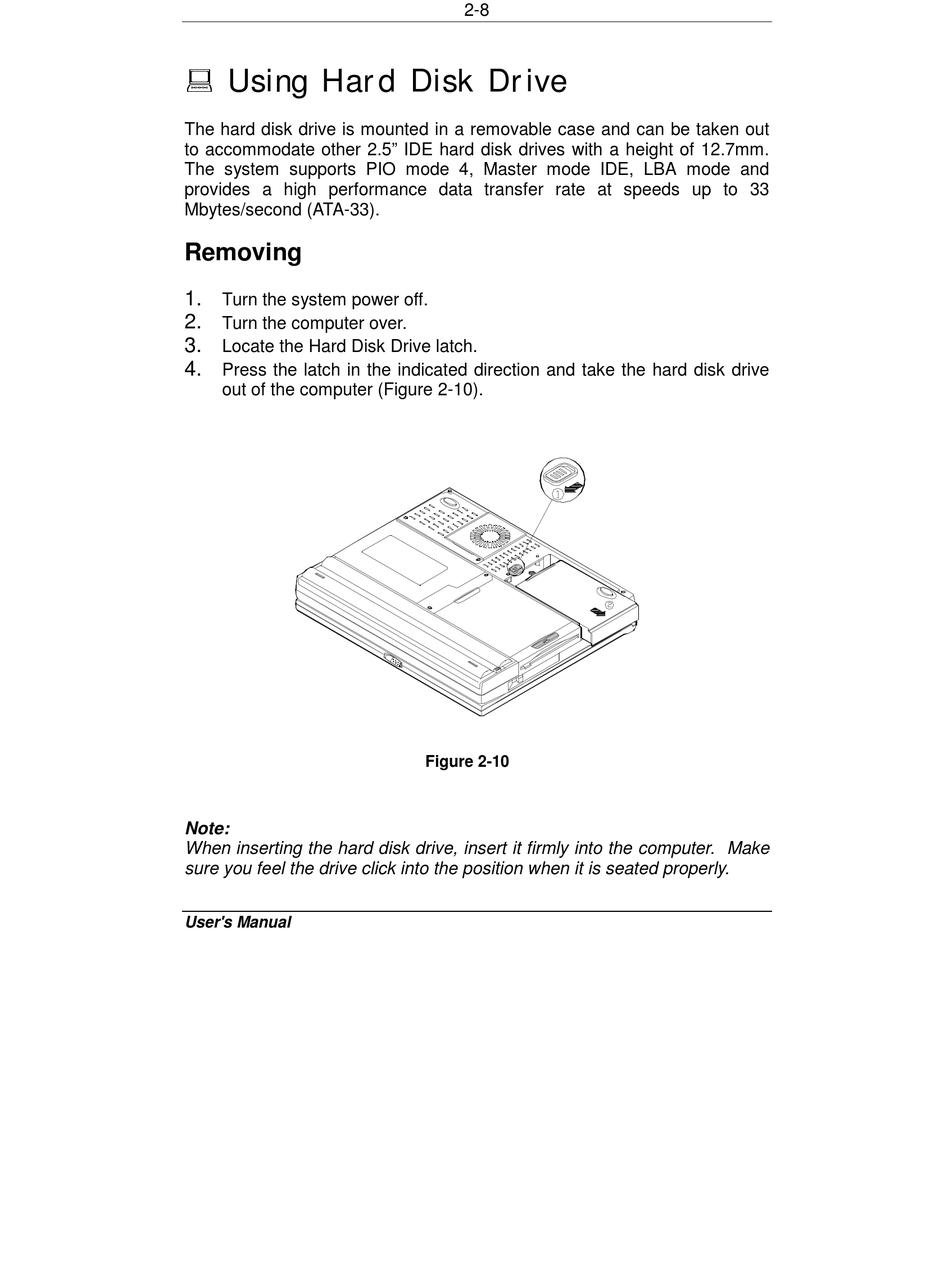

! ! ! ! Using Hard Disk Drive

The hard disk drive is mounted in a removable case and can be taken out
to accommodate other 2.5" IDE hard disk drives with a height of 12.7mm.
The system supports PIO mode 4, Master mode IDE, LBA mode and
provides a high performance data transfer rate at speeds up to 33
Mbytes/second (ATA-33).

Removing

1.
Turn the system power off.
2.
Turn the computer over.
3.
Locate the Hard Disk Drive latch.
4.
Press the latch in the indicated direction and take the hard disk drive
out of the computer (Figure 2-10).
Note:
When inserting the hard disk drive, insert it firmly into the computer. Make
sure you feel the drive click into the position when it is seated properly.
User's Manual
2-8
Figure 2-10
