Attaching a TV Set

The S-Video jack on the rear panel of the computer is used for transmitting
video signals to a TV set. You may need to select the video standard for
video display. Enter the System Configuration Utility (SCU), Components
Menu to specify the appropriate TV mode. Simultaneous display on
external monitor (CRT) and TV is available. You can enter the SCU to
select the appropriate parameters or use the Fn + F6 keys (refer to Chapter
2, Using Hot Keys).

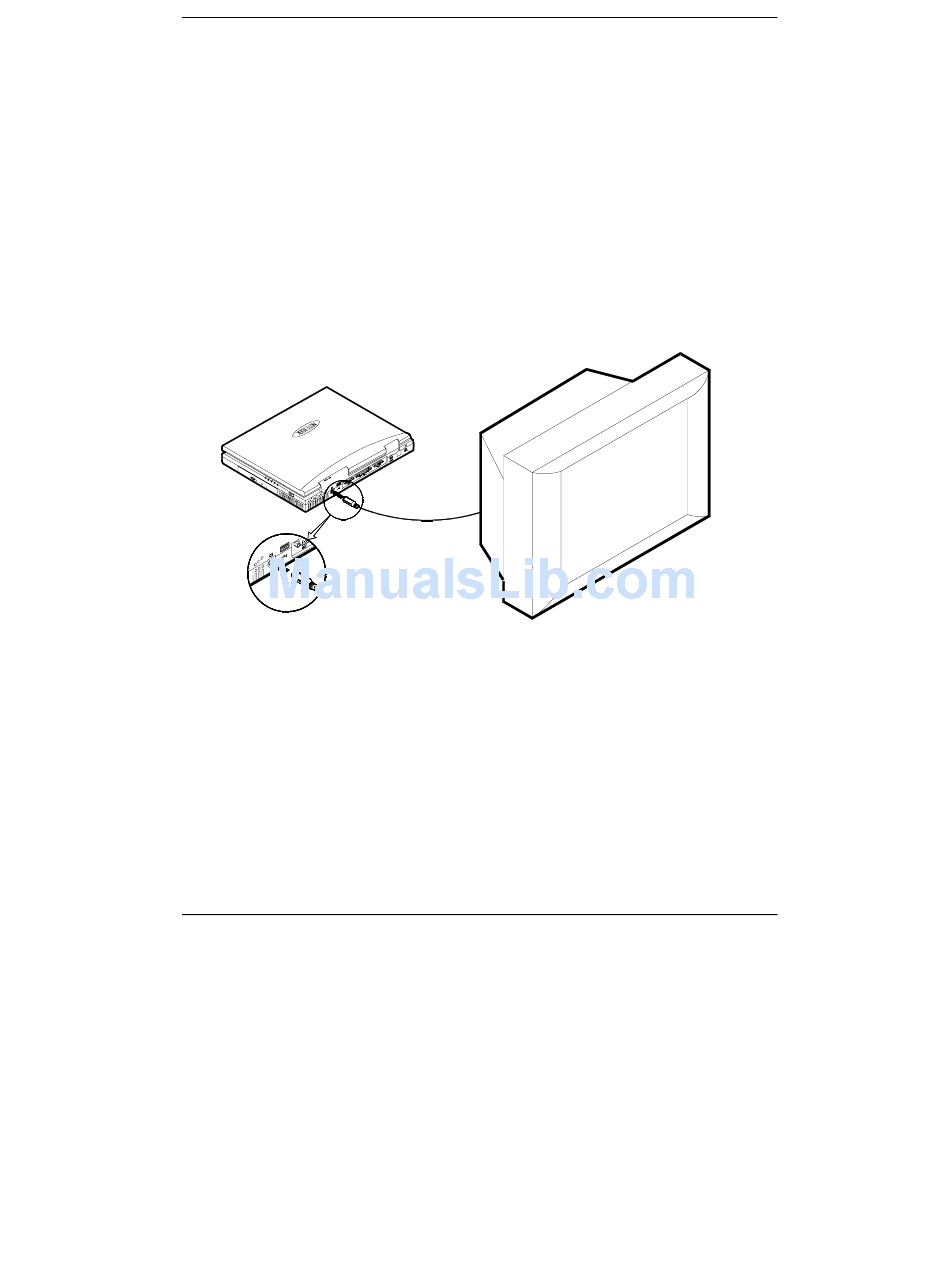

Attach the TV set as shown below (Figure 2-24).
Figure 2-24
