! ! ! ! Upgrading Processor Module
The DeskNote supports Intel Celeron processor at 300MHz, 333MHz,
366MHz, 400MHz, and 433MHz Core frequencies.
The Intel Celeron processor provides good performance for applications
running on advanced operating systems, such as Window 95/98,
Window NT, and UNIX.

Replacing the Processor

1. Remove all the power sources (AC power and battery).
2. Turn the computer over.
3. Remove the CPU cover.
4. Remove the screws that fasten the heat sink mounted on the
processor.

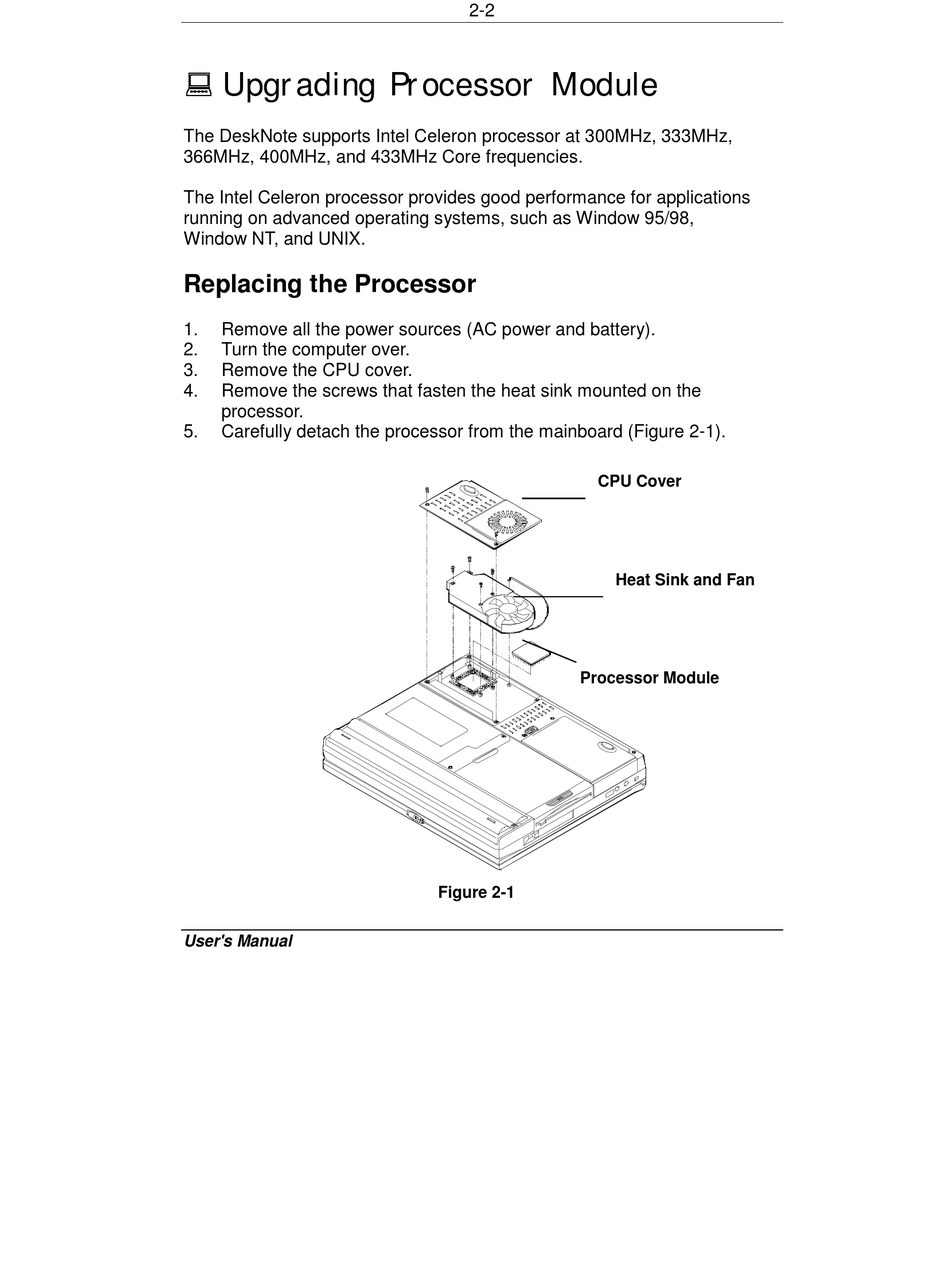

5. Carefully detach the processor from the mainboard (Figure 2-1).
User's Manual
2-2
CPU Cover
Heat Sink and Fan
Processor Module
Figure 2-1
