Attaching a Parallel Printer

You may connect any standard Centronics parallel printer to your computer
through the parallel port.
1.
Turn the system power off.
2.
Connect the cable to the parallel port on the rear of the computer.
3.
Tighten the screws that fasten the cable to the parallel port (Figure 2-
23).
4.
Insert the other end of the cable to the printer's connector. Fasten the
cable's connector.
5.
Turn on the printer and computer.
In addition, you also need to install the manufacturer-supplied driver for the
printer. Refer to the device's user's guide for more information. If the
connected printer supports EPP (Enhanced Parallel Port) or ECP
(Extended Capabilities Port) mode, please enter System Configuration
Utility (SCU) to configure the required setting.
2-25

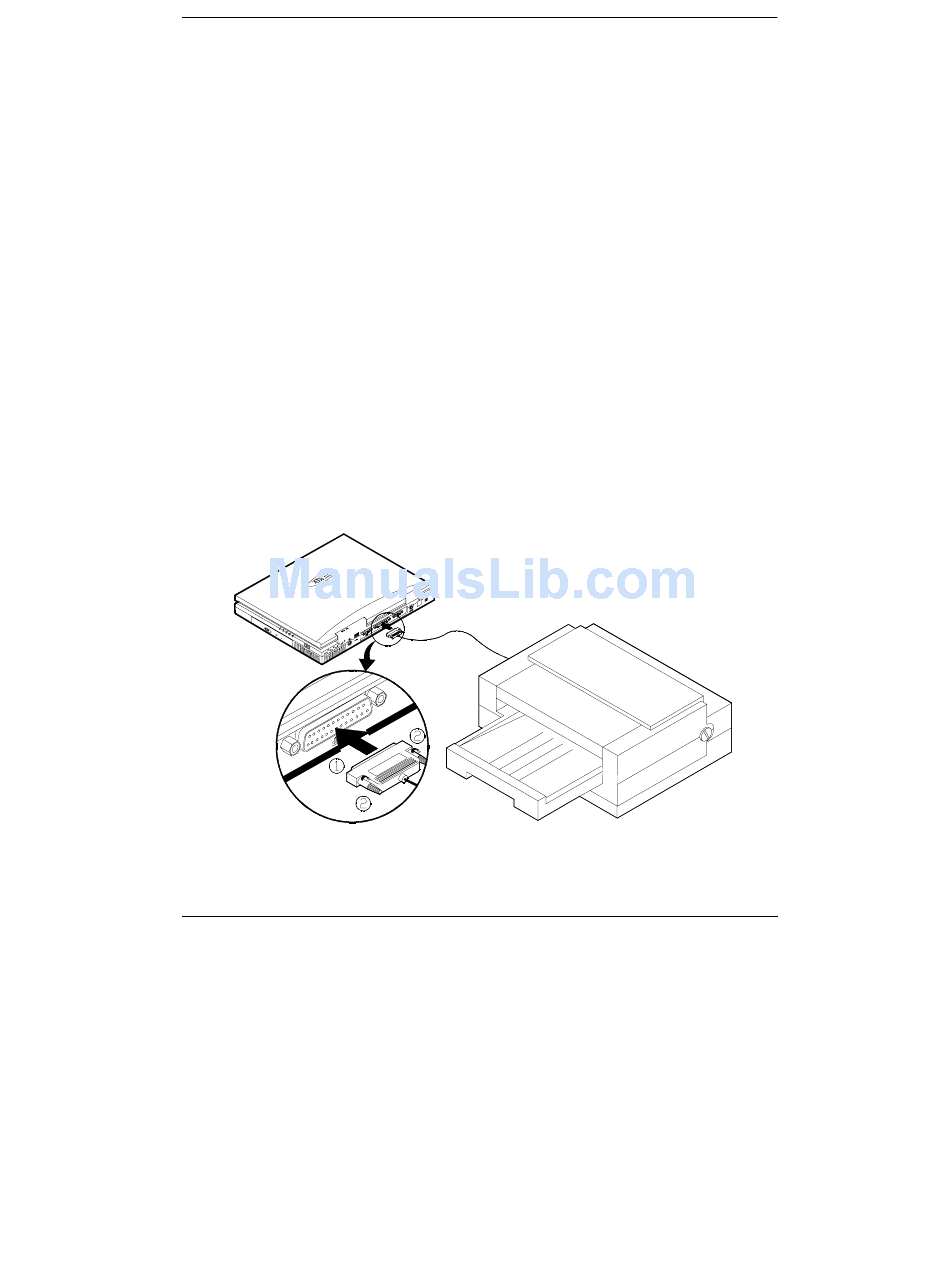

Figure 2-23
Chapter 2: Operation
