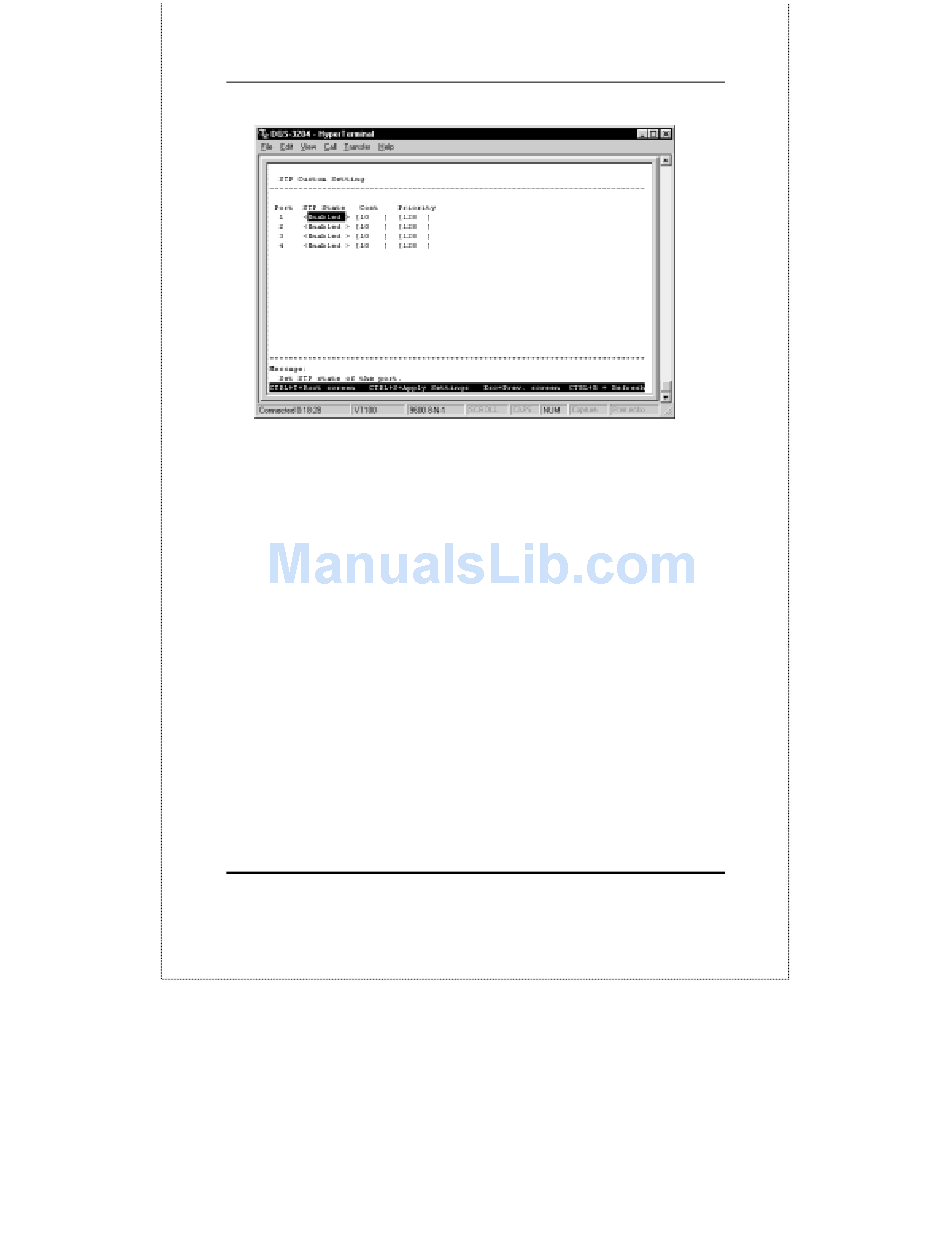

Figure 6-16. STP Custom Setting screen
3. Change the Disabled setting of the STP State field to
Enabled.
4. Set the path cost for the port between 1 and 65535 in the
Cost field.
5. Set the priority for the port between 0 and 255 in the
Priority field.
6. Press CTRL+S to apply the new settings.
Configure Forwarding and Filtering Table
When a packet hits the Switch, the Switch looks in the
filtering and forwarding tables to decide what to do with
the packet; either to filter it off the network, or to forward
it through the port on which its destination lies. The
Configure Filtering and Forwarding table screen allows
Using the Console Interface
Gigabit Ethernet Switch User's Guide
57
