Gigabit Ethernet Switch User's Guide

Configure Ports

The port configuration screen allows you to change the port
state in the case when you would like to partition a port, or
for observation, device repair, or security reasons. Great
caution, however, must be observed when partitioning a
port; you should make sure that the partitioned port is not
being used as the port to control or monitor the condition of
other devices.
To change the configuration of a port:
1. Select System Configuration from the main menu and
then choose Configure Ports. The following screen
appears:

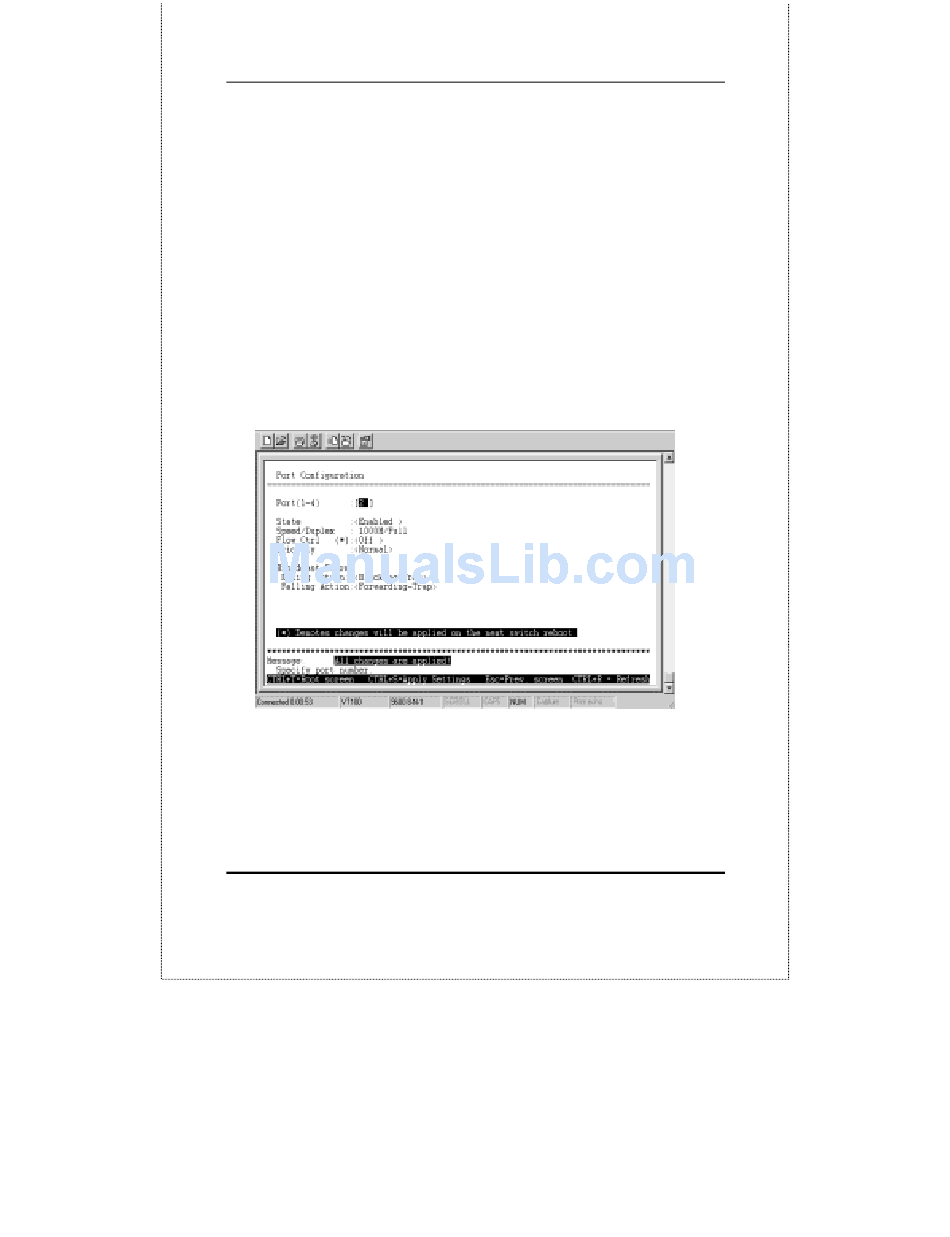

Figure 6-12. Port Configuration screen
2. Specify the port in the Port (1-4) field.
3. In the State field, change the port state to Enabled or
Disabled.
48 Using the Console Interface
