Chapter 2
Mass
Storage
Unit
Uninterruptible
Power Supply
NEMA 5-20P
Detachable Cord
NEMA 5-20P to IEC 320 C-20

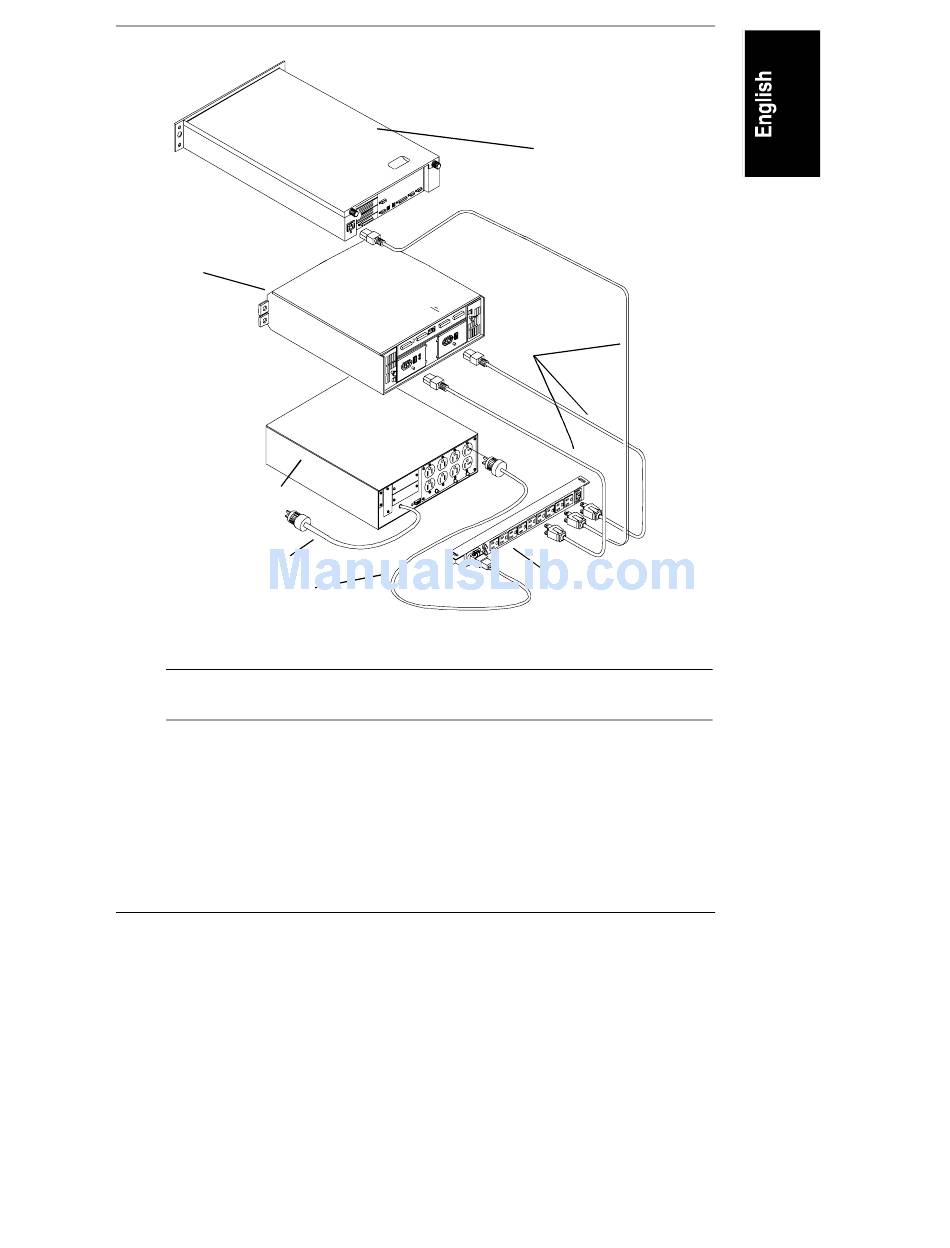

Figure 2-11. PDU 120 VAC Configuration
NOTE PDUs, UPSs, and power cables will vary from those presented
here to meet Japanese standards.
Figure 11 shows a UPS connected to the power grid through a captive cord
2-
with a NEMA 5-20P. The UPS has receptacles for use in the rack: two NEMA 5-
20R (on the right rear) and six NEMA 5-15R. The PDU connects to the UPS via
a detachable cord (NEMA 5-20P to an IEC 320 C20). The 120 VAC PDU has
nine NEMA 5-15R and one (at the right) IEC 320 receptacle. The fan (not
required if perforated doors or no doors are used front and back) plugs into the
PDU using the right-most IEC 320 receptacle.
Connecting and Routing Cables to the HP NetServer LPr
Recommended 100/120 VAC
Power Configuration for the LPr
HP NetServer LPr
Jumper Cables
NEMA 5-15P
to IEC 320
C-14
120 VAC, 16-Amp
PDU
