Placement of PDUs
To determine where the PDU mounts, eliminate positions directly behind the
equipment listed in Table 2-2. (PDUs conflict with these units when mounted in
the same space). Then decide the most convenient location. The PDU can be
mounted vertically using the non-EIA mounting holes on the outer edges of the
vertical columns, or it can be mounted horizontally between the columns.
With the extended rear brackets that come with the LPr, you can also mount a
PDU directly behind a LPr. Figure 2-3 shows possible PDU positions and
orientations.
Connecting and Routing Cables to the HP NetServer LPr
10-Amp Wide
Ranging,
208/230 VAC
Order
Separately
as E7670A
16-Amp, Wide
Ranging, 208/230 VAC,
E7671A, Power Cord
Separately Orderable

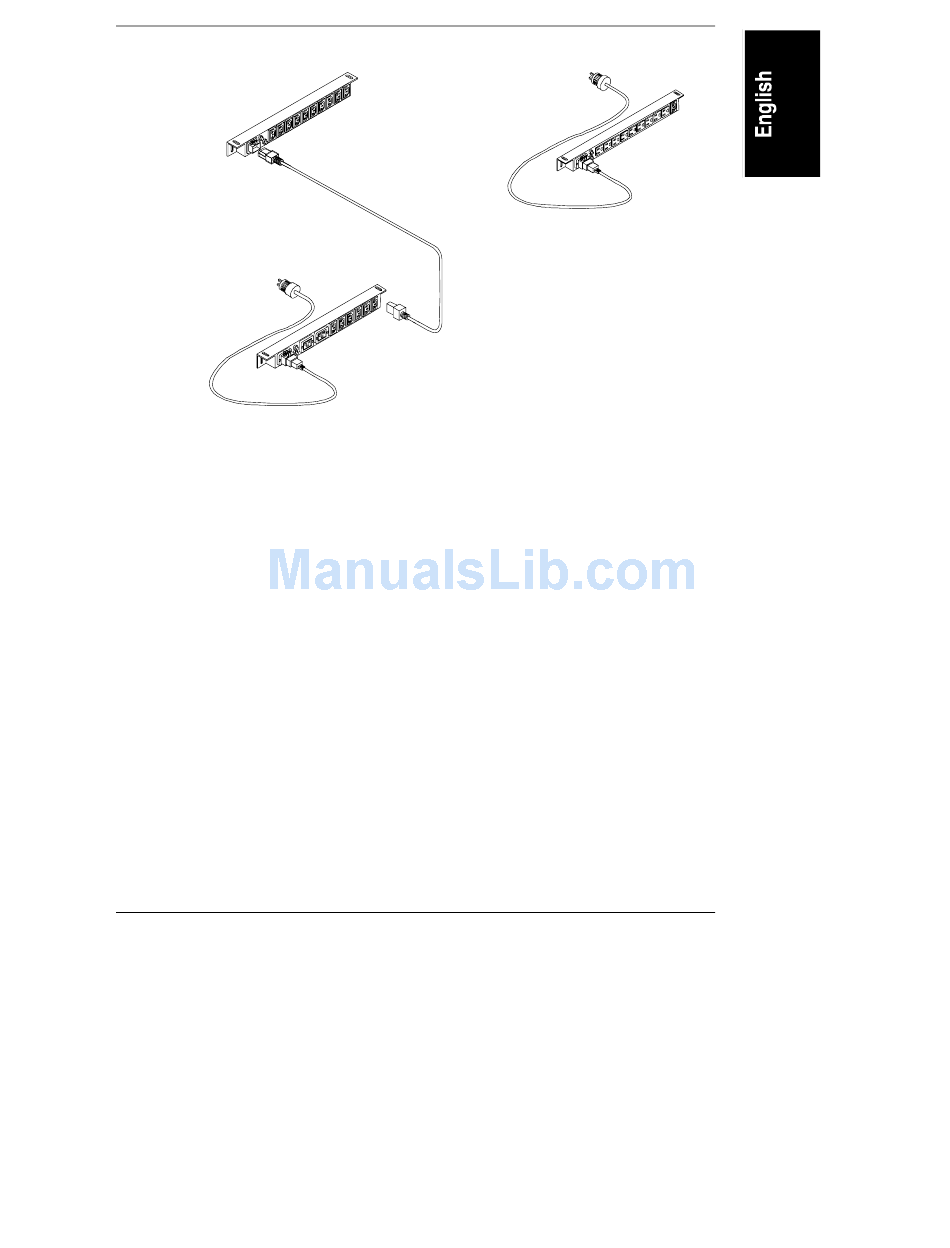

Figure 2-2. Three Types of PDUs
16-Amp, 110 VAC
PDU, E7675A
