Chapter 2
Fan 1
Assembly
Catch
Accessory
Board Guide
Fan 0
Assembly
Catch
Fan Cables
Fan 1
Connector
Fan 0
Connector

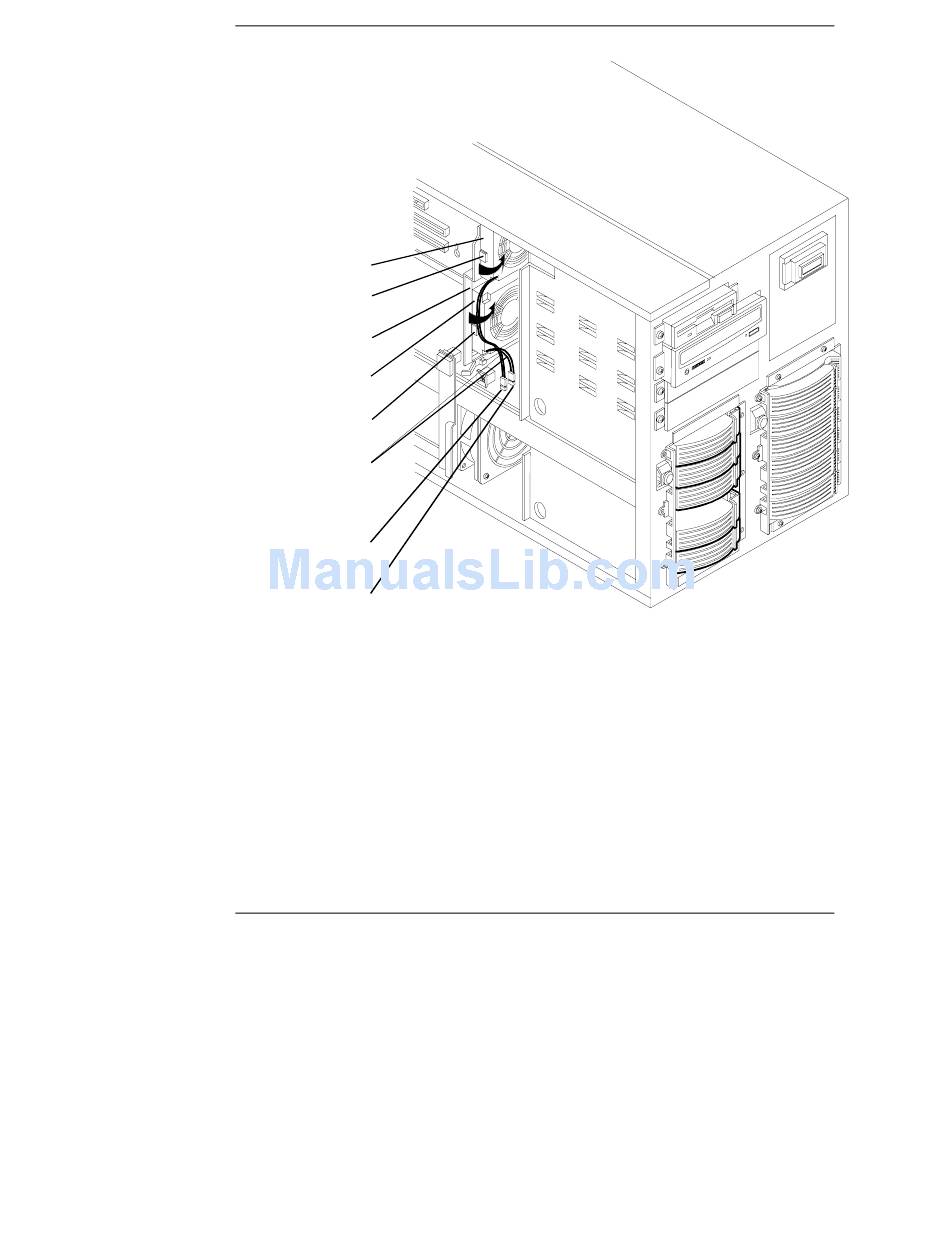

Figure 2-13. Remove Fan Assemblies from NetServer
(Shown for HP NetServer LH 3; Details of Fan Cables May Vary)
2. Remove Fan Assemblies 0 and 1, as follows:
a. Press firmly on the catch in the side of one fan assembly, shown in
Figure 2-13, and swing the outer side of the fan assembly away from the
accessory board guide.
b. Pull the fan assembly gently outward to disengage its prongs on the far
side of the fan assembly. Remove the fan assembly from the NetServer.
c. Repeat actions a. and b. for the other fan assembly.
22
in Pedestal Configuration
Installation
