Installing an optical drive (desktop configuration)

1. Disconnect power from the system
2. Remove the side access panel
3. If your system has an airflow guide, remove it (see
4. Remove the front bezel (see
5. Remove the bezel blank where the drive is being added.

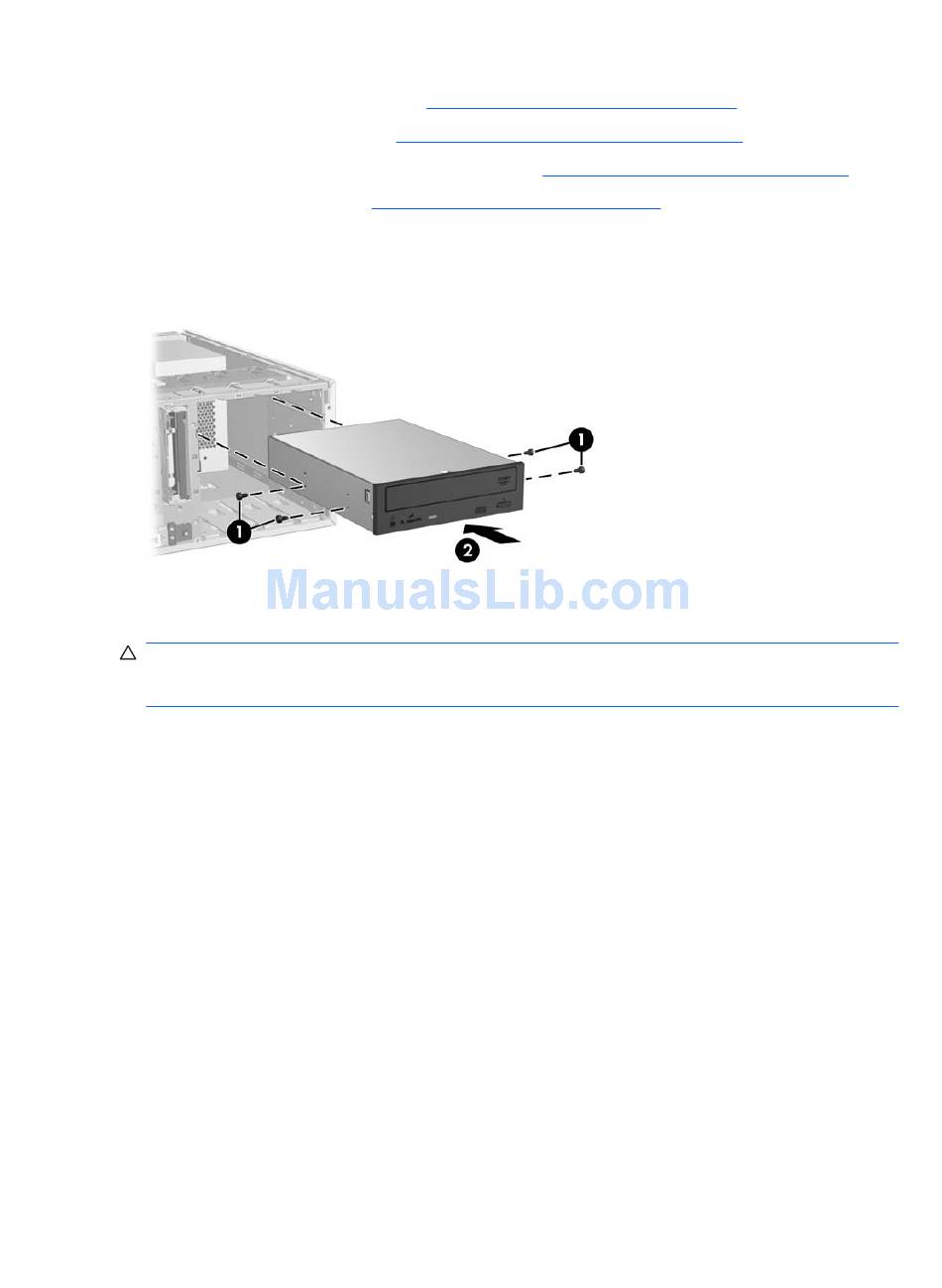

6. Install the four black metric M3 guide screws into the drive (1).
Figure 5-20
7. Align the screws with the grooves in the drive bay and gently slide the drive into the bay until it
snaps into place (2).
CAUTION:
drive to see if it can be disengaged. Failure to properly secure the drive can cause damage to the
drive when moving the workstation.
86 Chapter 5 Replacing components
(Predisassembly procedures on page
(Removing the side access panel on page
Removing the front bezel on page
Installing the optical drive
Ensure that the optical drive is secure in the workstation chassis by pulling on the
69),
Removing the airflow guide on page
75),
72),
92).
