Compaq t1000 - Terminal Thin Client PC Manual page 74

The full range of colors available is displayed in the large color selection box. A target
cursor is positioned over the currently selected color. To select a new color you can either
click on the color required or drag the target cursor over it. The color displayed in the
Color box changes accordingly. The lightness of the selected color can be altered by drag-
ging the triangular pointer up or down the vertical bar to the right. When you have the
required color, click the Add to Custom Colors button to apply the change to the set of
custom colors.
The numeric value of Hue, Lightness and Saturation, or the Red, Green and Blue per-
centage values can be entered directly in the text boxes. The color displayed in the Color
box changes accordingly. When you have the required color, click the Add to Custom
Colors button to apply the change to the set of custom colors.

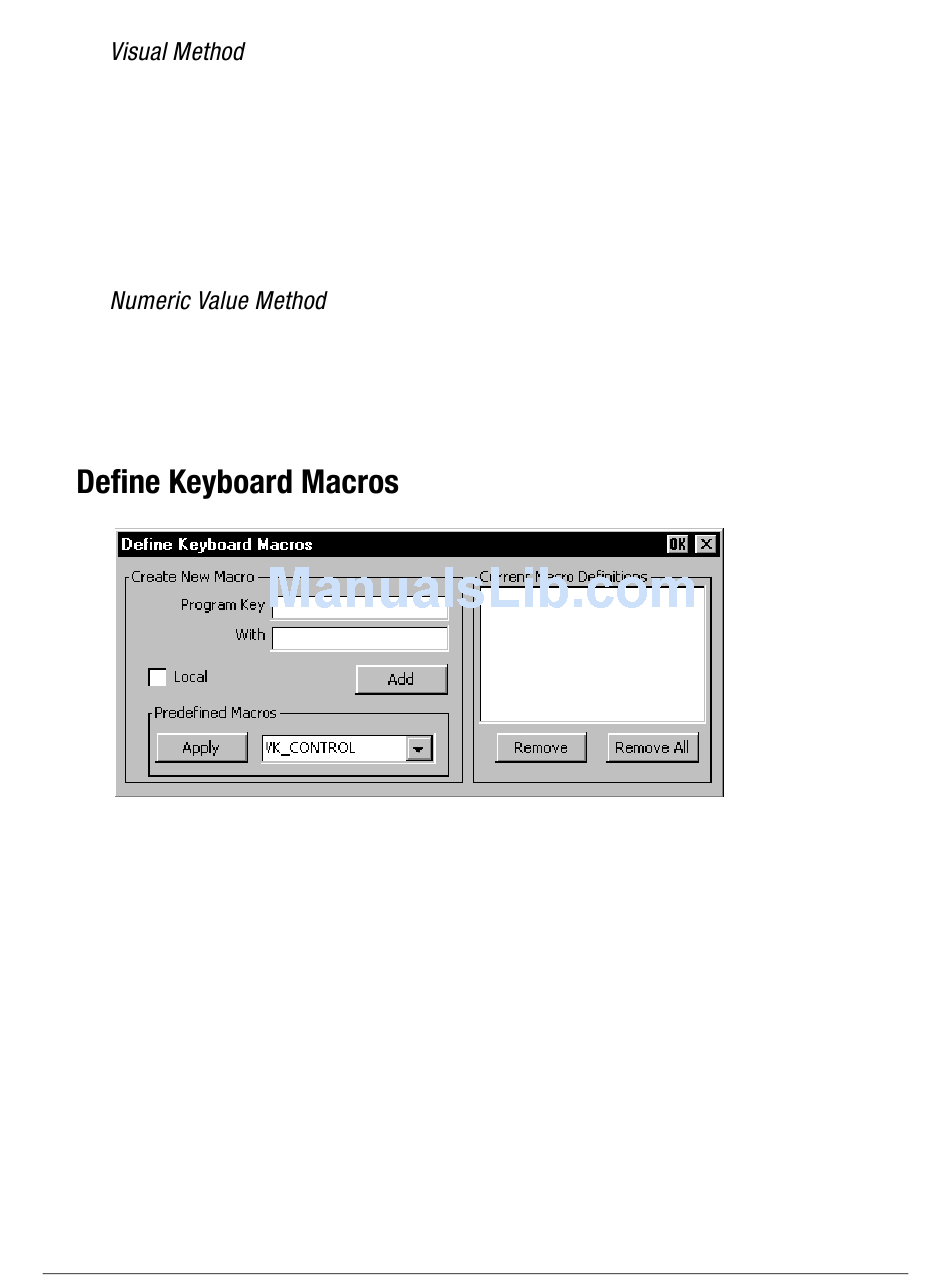

This dialog box is displayed by selecting Keyboard Macros in the Settings menu.
The Define Keyboard Macros dialog box enables you to redefine the function of most of
the keys on your keyboard, including the key combinations listed below:
• Key
• Shift + Key
• Control + Key
• Control + Shift + Key
• Alt + Key
Each definition may contain a string of up to 127 characters. The combined total of all the
characters that may be programmed into keys is determined by the 127-character limit per
definition and the amount of memory available in your PC.
Setup Menus
4-36
