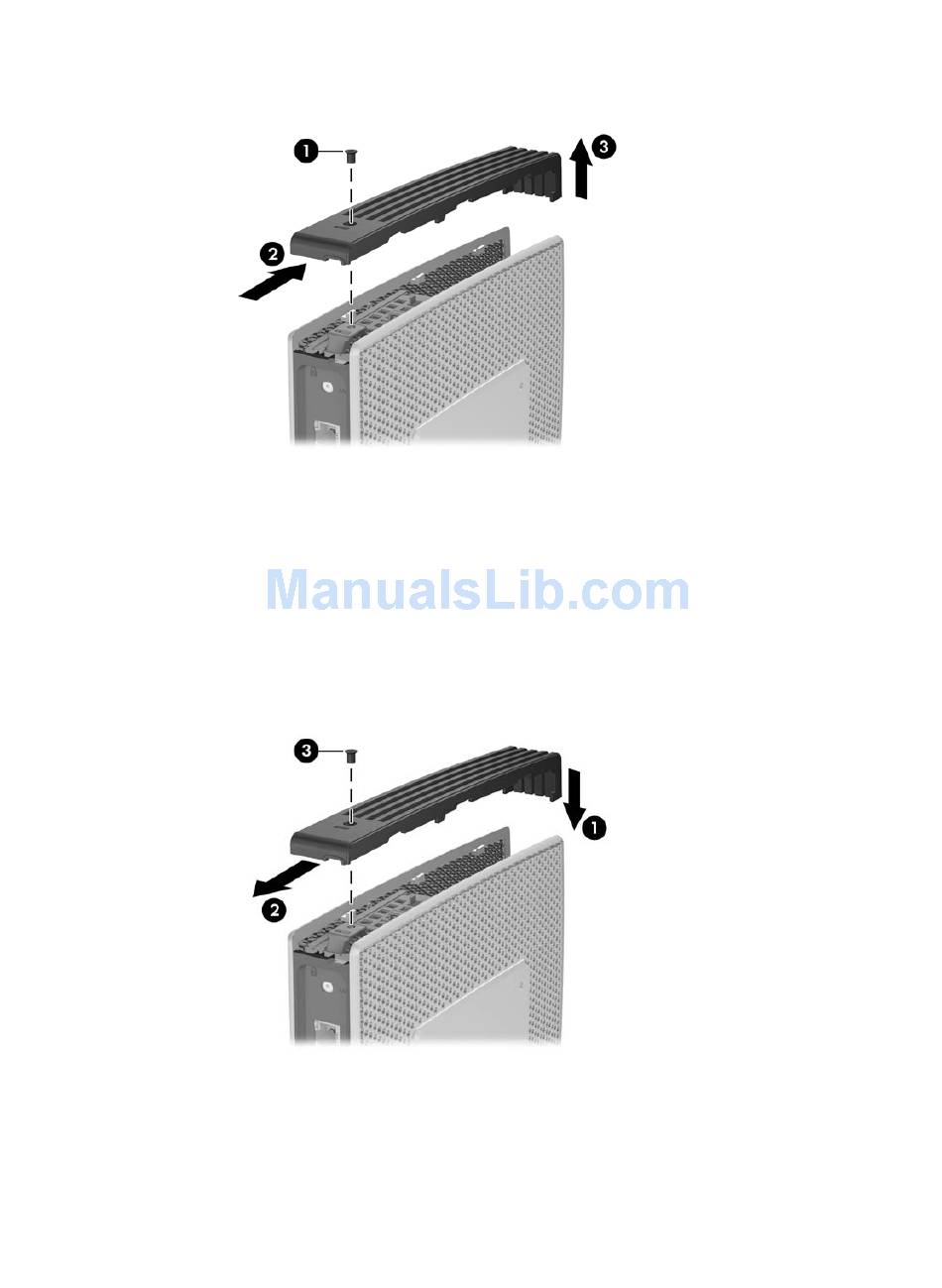

Remove the cover from the unit by first lifting the rear (screw side) of the cover, and then lifting

the cover off the unit (3).

Figure 2-1

Replacing the Secure USB Compartment Cover

To replace the secure compartment cover:

Place the cover on top of the unit so it is offset about 1.27 cm (1/2 inch) toward the rear of the

unit, allowing the tabs on the cover to align and insert into the slots on the chassis (1).

Slide the cover toward the back of the unit until it locks in place and the cover is flush with the

front panel of the chassis (2).

Replace the screw (3).

Figure 2-2

Removing the secure USB compartment cover

Replacing the secure compartment cover

Removing and Replacing the Secure USB Compartment Cover
