Removing and Replacing the Secure USB Compartment

Cover

The secure USB compartment allows you to install two USB devices in a secure location inside the thin

client. Along with providing a hidden location, the secure USB compartment can be locked by the

optional security cable lock.

CAUTION:

(131° F) in worst case conditions. Make sure the specifications for any device you install in the

compartment indicate the device can tolerate a 55° C (131° F) ambient environment.

NOTE:

In addition to following these instructions, follow the detailed instructions that accompany the

accessory you are installing.

Before beginning the installation process, review

on page 11

for procedures you should follow before and after installing or replacing hardware.

Removing the Secure USB Compartment Cover

Use the following procedure to remove the secure USB compartment cover.

WARNING!

off and the power cord is disconnected from the electrical outlet.

To remove the secure USB compartment cover:

On rear of the thin client, remove the screw that secures the compartment cover to the unit (1).

On the front of the unit, push the compartment cover about 1.27 cm (1/2 inch) toward the front of

the unit (2).

Remove the cover from the unit by first lifting the rear (screw side) of the cover, and then lifting the

cover off the unit (3).

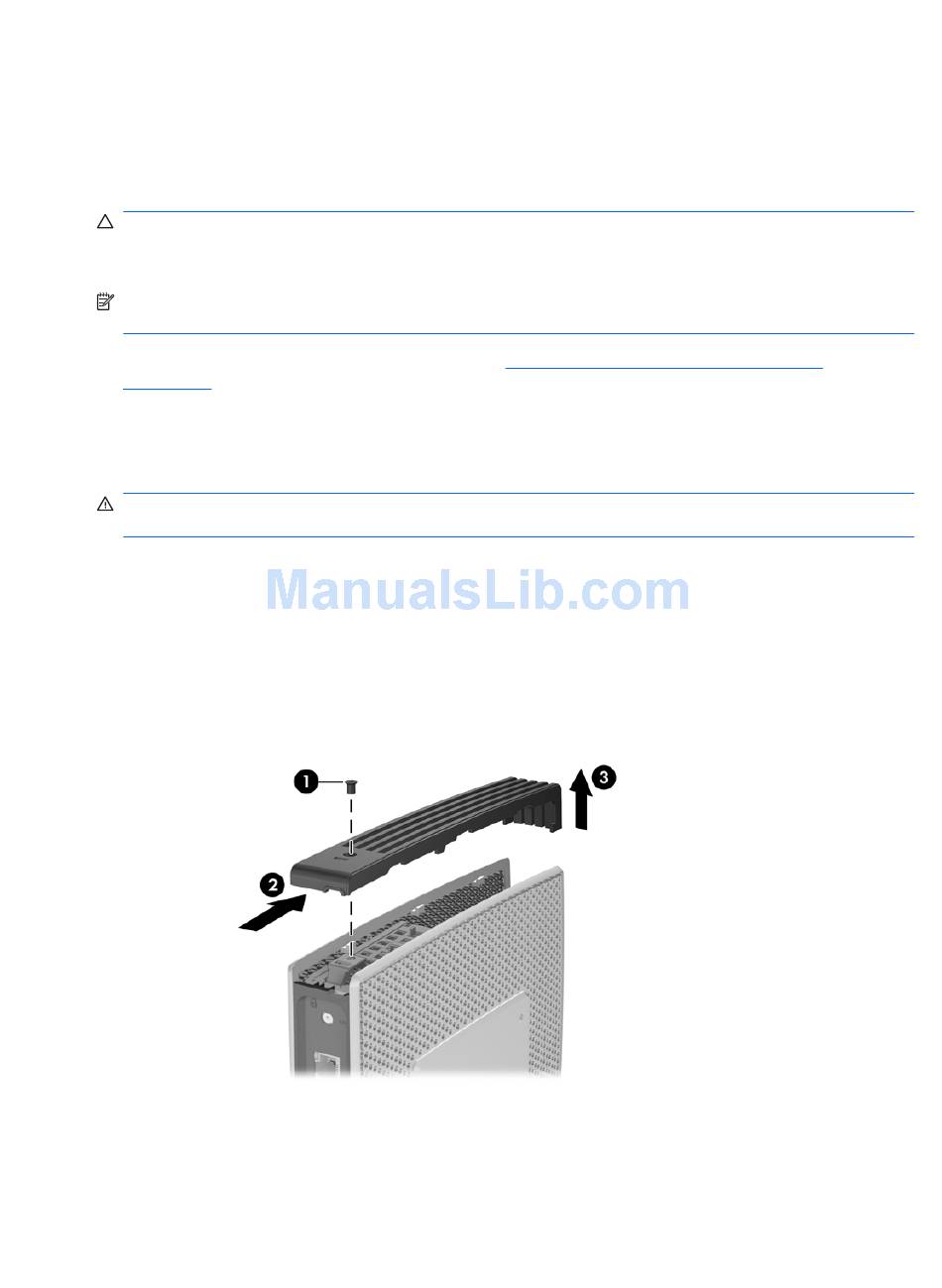

Figure 2-1

ENWW

The ambient temperature inside of the secure USB compartment can reach up to 55° C

Before removing the secure USB compartment cover, ensure that the thin client is turned

Removing the secure USB compartment cover
