Rear Panel Components

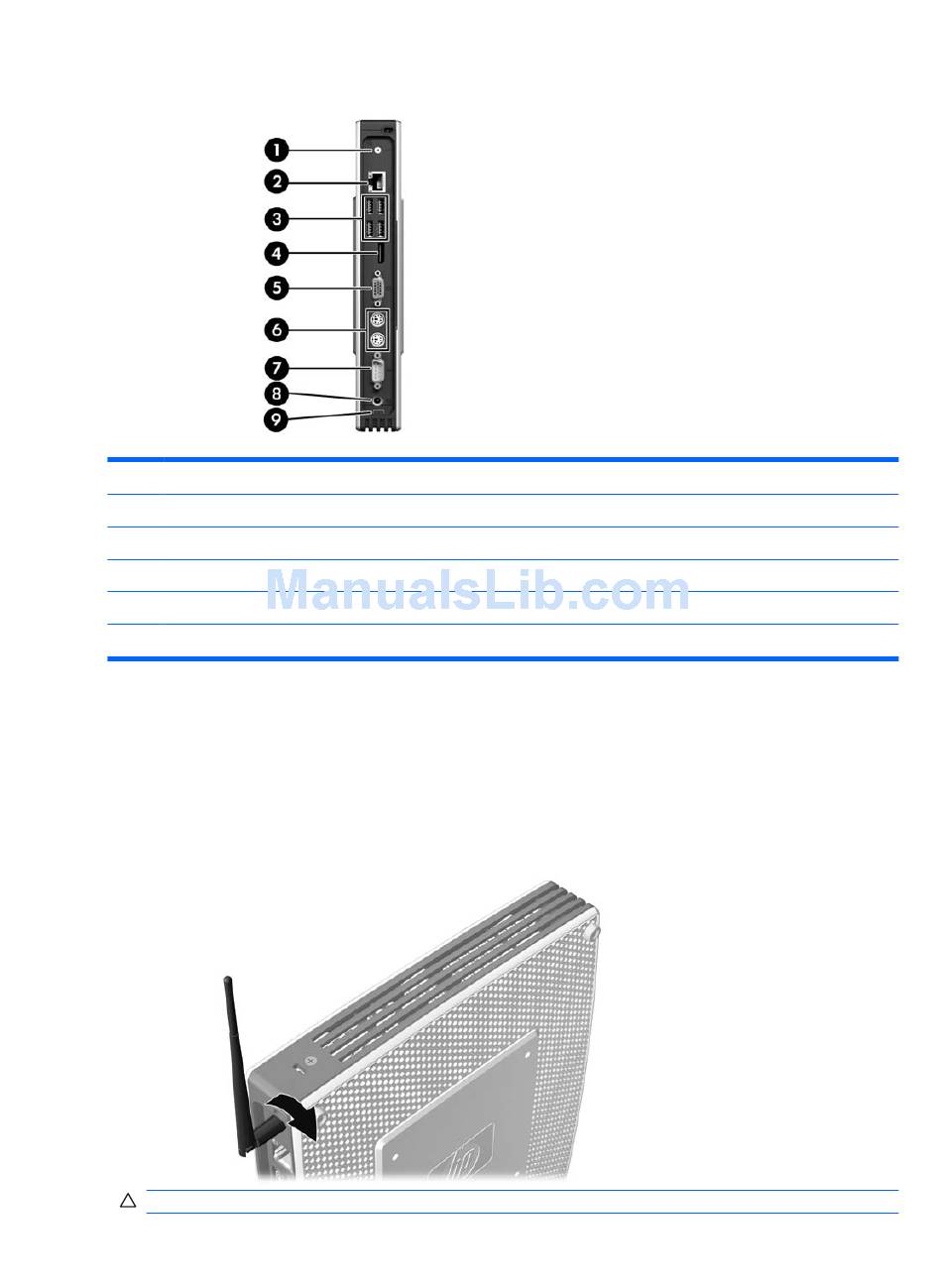

Figure 1-4
(1)
Wireless antenna*
(2)
Ethernet RJ-45 connector
(3)
Universal serial bus (USB) connectors (4)
(4)
DisplayPort connector
(5)
VGA connector
*Available on some models. Refer to the model-specific QuickSpecs at www.hp.com for details.
The wireless antenna allows you to send and receive wireless signals to communicate with wireless
local area networks (WLAN).
Installing the Antenna (Wireless Models)
▲
Screw the antenna in place on the rear of the thin client.
Figure 1-5
CAUTION:
4
Chapter 1 Product Description
Rear panel components
Installing the antenna
To prevent damage to the antenna mounting, do not overtighten the antenna.
(6)
PS/2 connectors (2)
(7)
Serial connector
(8)
Power connector
(9)
Power cord retention slot
