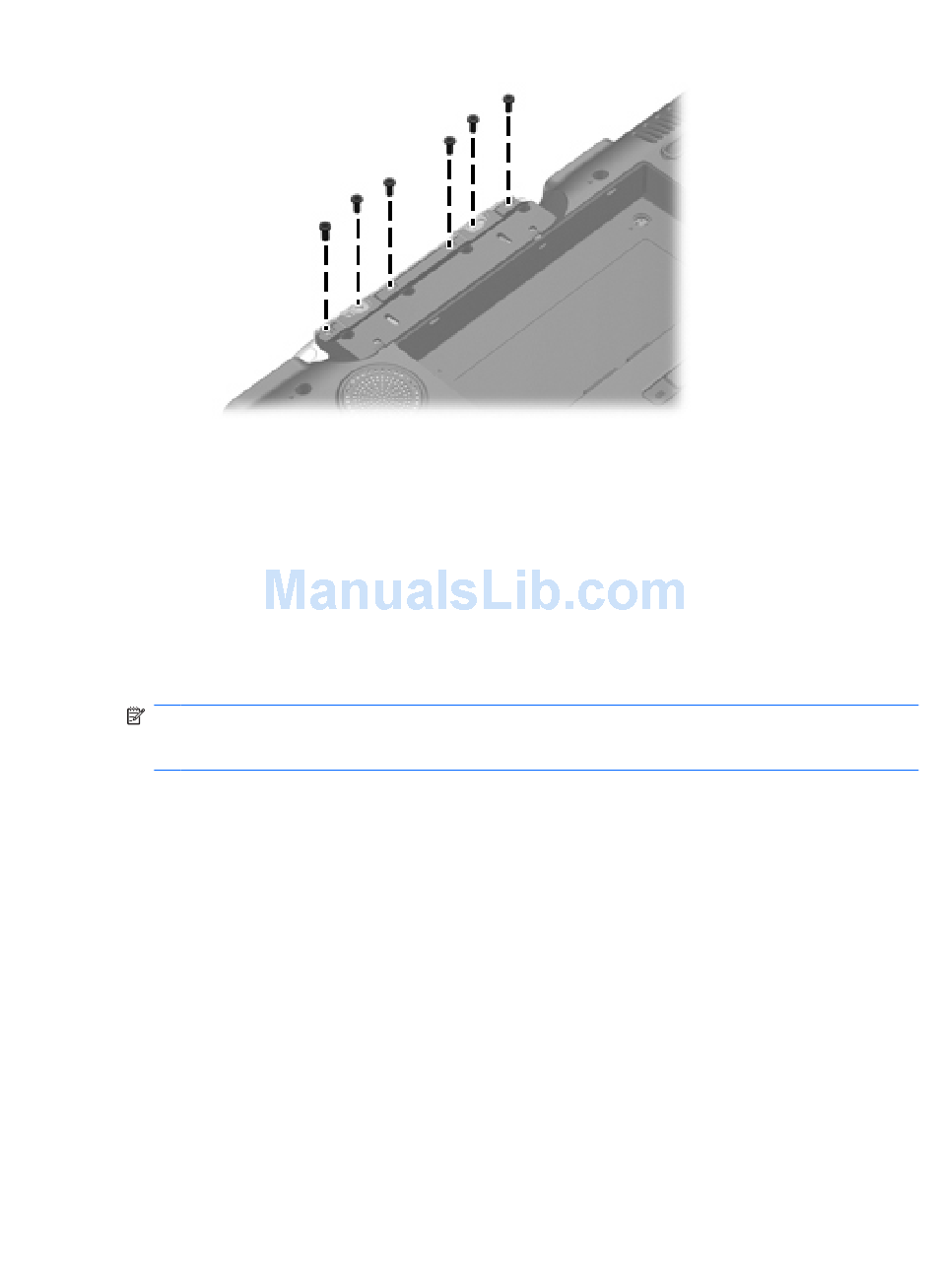

Remove the six Phillips PM3.0×8.0 screws that secure the display assembly to the computer.
2.
Turn the computer display-side up, with the front toward you.
3.
Open the computer to an upright position.
4.
Disconnect the following cable connectors:
5.
(1) Display panel cable
(2) Camera module cable
(3) Speaker cable
(4) Microphone cable
NOTE:
The speaker cables are black and red and share a single connector. The microphone cables
are gray and white and share a single connector. Be sure that these connectors are correctly
reconnected when installing the display assembly.
Component replacement procedures
65
