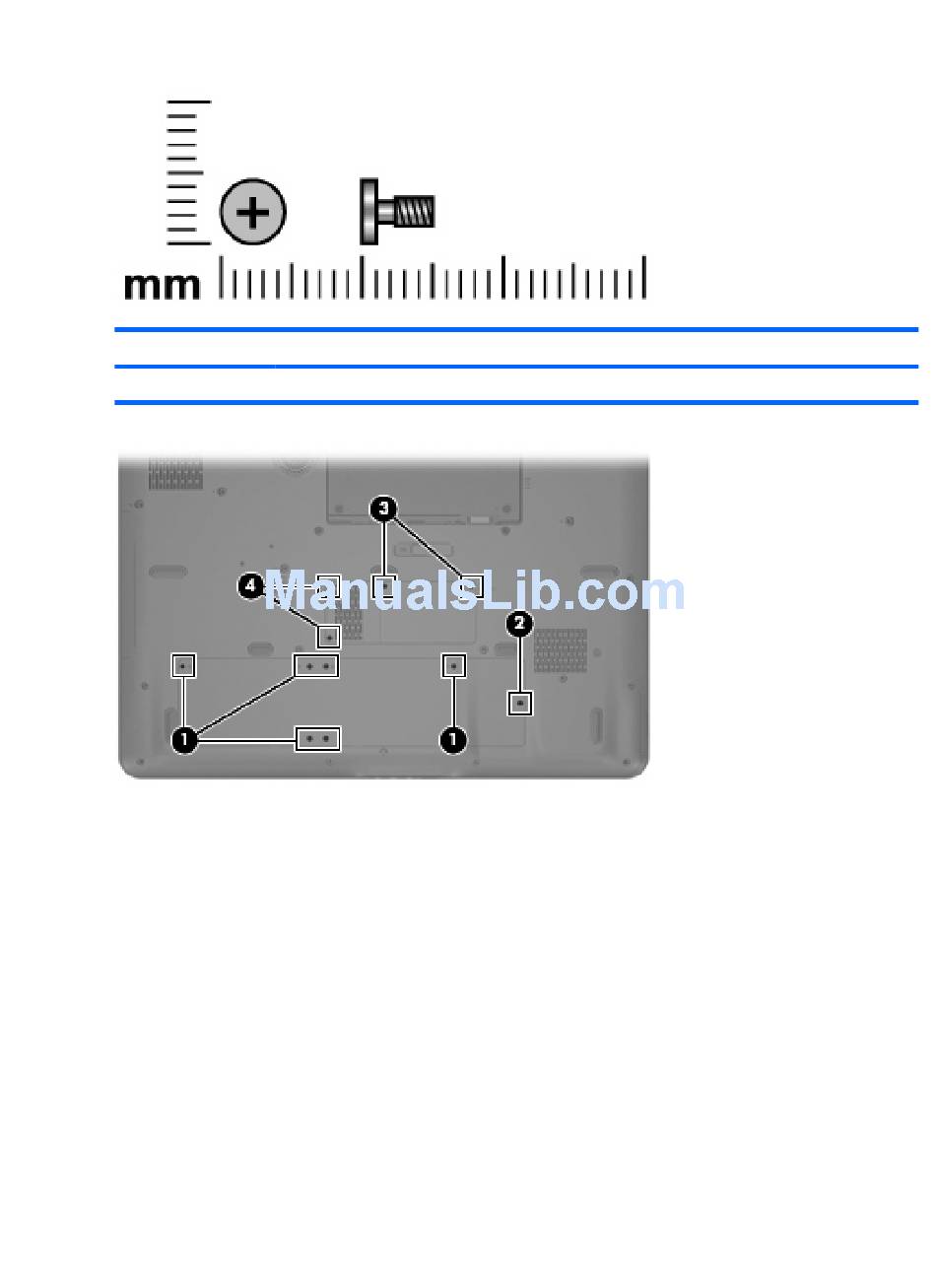

Black Phillips PM2.0×5.0 captive screw
Color
Black
Where used:
(1) Six captive screws (secured by C-clips) that secure the hard drive bay cover to the computer
(2) One captive screw (secured by a C-clip) that secure the WLAN module compartment cover to the
computer
(3) Two captive screws (secured by C-clips) that secure the memory module compartment cover to the
computer
(4) Two captive screws (secured by C-clips) that secure the TV tuner module compartment cover to the
computer
Quantity
Length
11
5.0 mm
Thread
2.0 mm
Black Phillips PM2.0×5.0 captive screw 113
Head diameter
4.5 mm
