Intel Desktop Board D865PERL Technical Product Specification

2.8.1 Back Panel Connectors

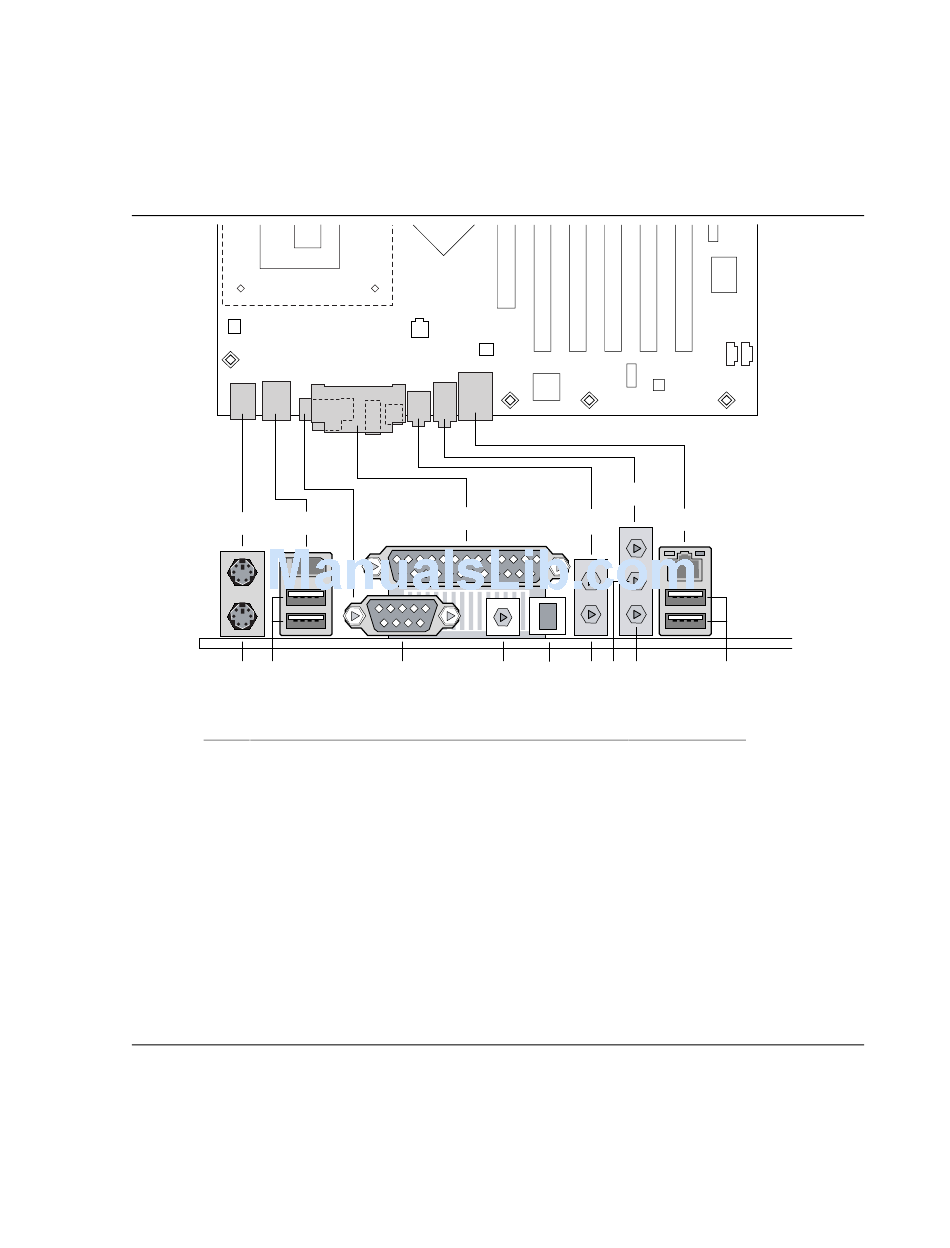

Figure 19 shows the location of the back panel connectors. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the
colors used.
A
B D
Item Description
A PS/2 mouse port
B PS/2 keyboard port
C IEEE 1394a-2000 port (optional)
D USB ports [two]
E Serial port A
F Parallel port
G Coaxial S/PDIF (optional)
H Optical S/PDIF (optional)
I Audio rear left and right out (for 6-channel audio only)
J Audio center and LFE out (for 6-channel audio only)
K Audio line in
L Audio front left and right out
M Mic in
N LAN
O USB ports [two]
✏
NOTE
Powered speakers are required.
60
F
C
E
Figure 19. Back Panel Connectors
K
I
G J L M
H
Color
Green
Purple
Black
Black
Teal
Burgundy
Orange
Black/Gray
Black
Black
Light blue
Lime green
Pink
Black
Black
N
O
OM15907
