Intel Desktop Board D865PERL Technical Product Specification

2.10 Mechanical Considerations

2.10.1 D865PERL Form Factor

The Desktop Board D865PERL is designed to fit into an ATX-form-factor chassis. In Figure 28,
dimensions are given in inches [millimeters]. The outer dimensions of the board are 12.0 inches
by 9.6 inches [304.80 millimeters by 243.84 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification (see Section 1.4).
6.500
[165.10]
6.100
[154.94]
0.00
2.85
[72.39]
3.100
[78.74]
5.550
[140.97]
76
1.800
[45.72]
0.00
2.600
[66.04]

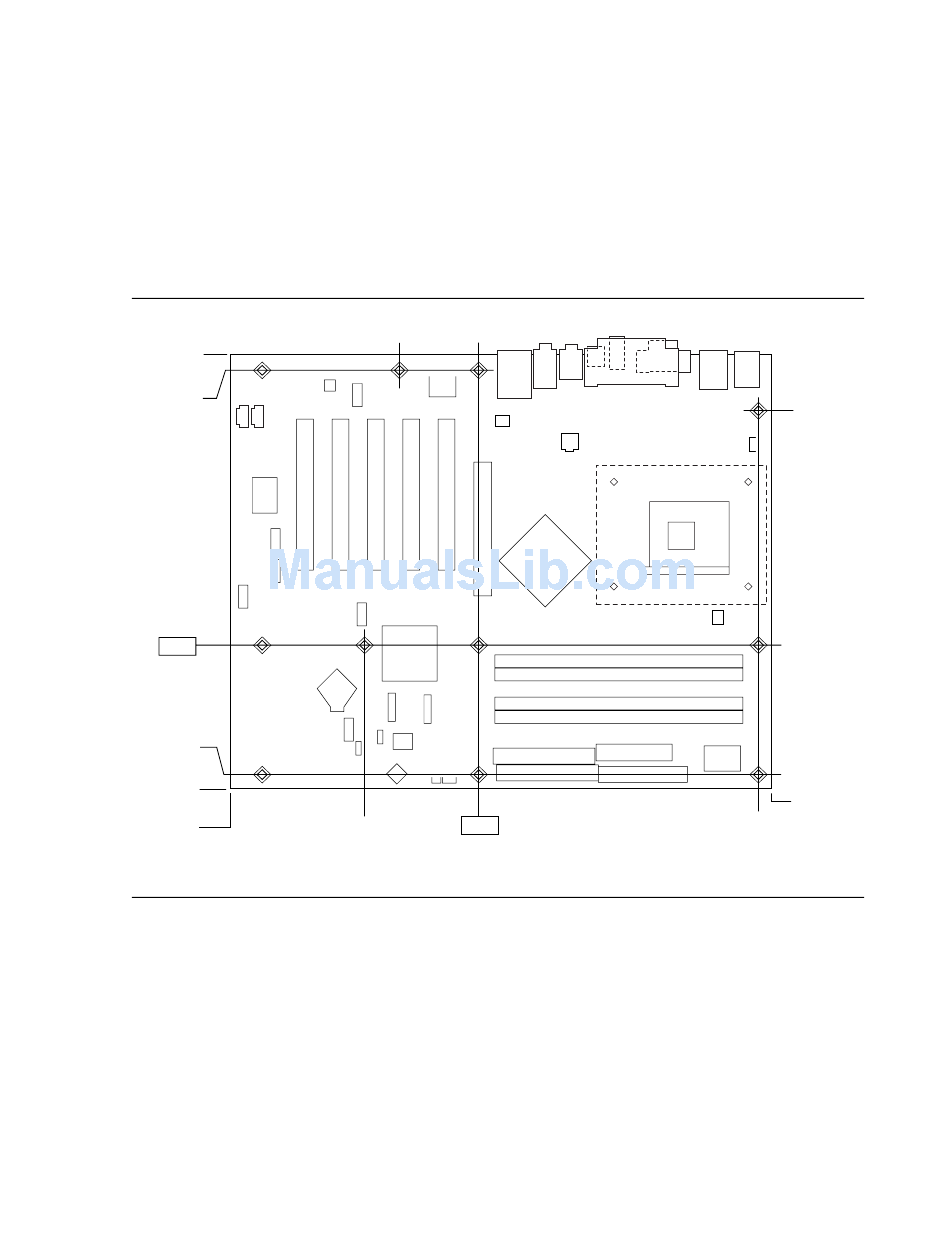

Figure 28. Board Dimensions
5.200
[132.08]
6.450
[163.83]
6.200
[157.48]
OM15904
