Intel Desktop Board D865PERL Technical Product Specification
2.8.2.4 Add-in Board and Peripheral Interface Connectors
Figure 22 shows the location of the add-in board and peripheral connectors for the Desktop Board
D865PERL. Note the following considerations for the PCI bus connectors:
•
All of the PCI bus connectors are bus master capable.
•
The SMBus is routed to PCI bus connector 2. This enables PCI bus add-in boards with SMBus
support to access sensor data on the Desktop Board D865PERL. The specific SMBus signals
are as follows:
 The SMBus clock line is connected to pin A40
 The SMBus data line is connected to pin A41
Item Description
A PCI bus connector 5
B PCI bus connector 4
C PCI bus connector 3
D PCI bus connector 2
E PCI bus connector 1
F AGP

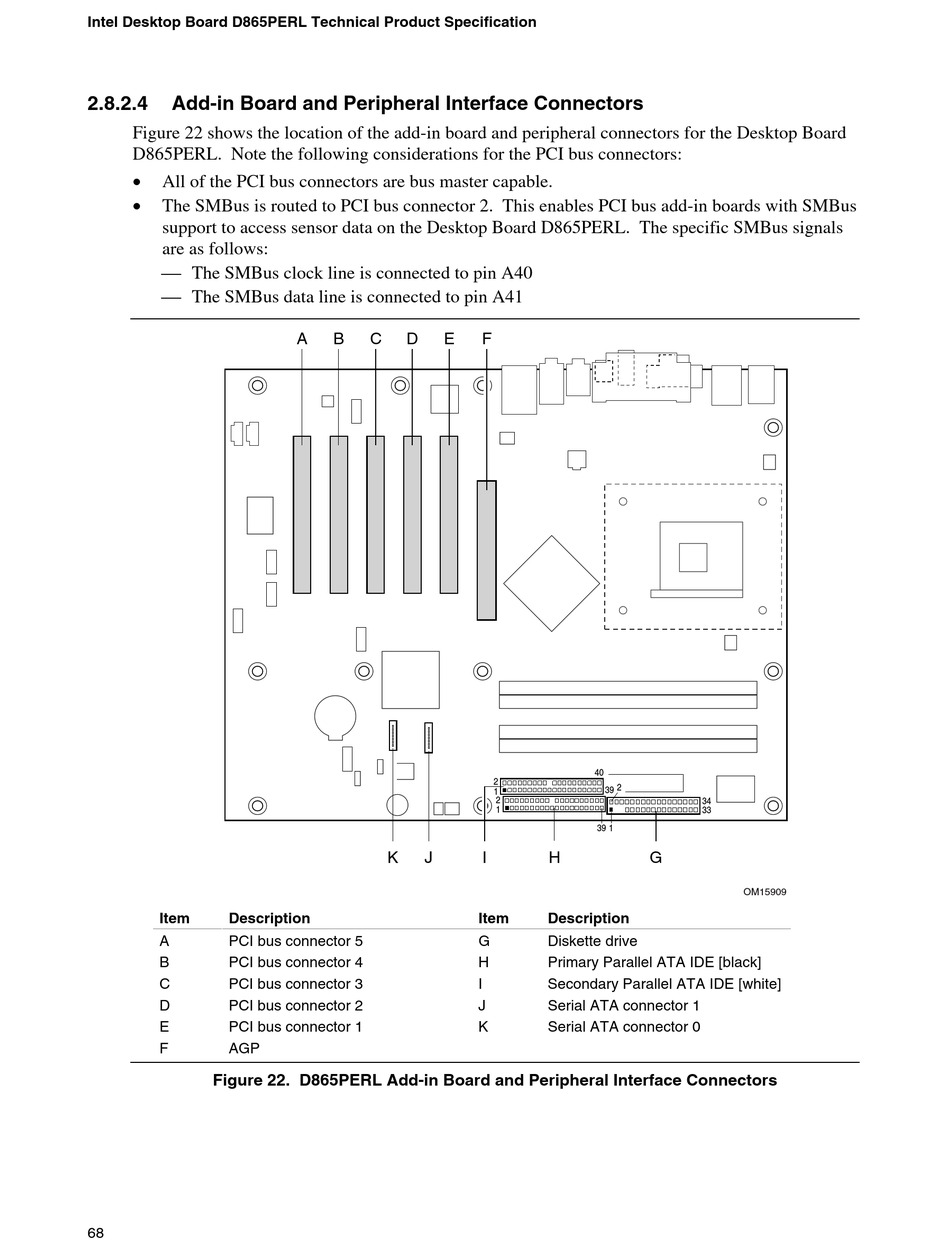

Figure 22. D865PERL Add-in Board and Peripheral Interface Connectors
68
A B C D E
K J
F
40
2
2
39
1
2
1
39 1
I H G
Item Description
G Diskette drive
H Primary Parallel ATA IDE [black]
I Secondary Parallel ATA IDE [white]
J Serial ATA connector 1
K Serial ATA connector 0
34
33
OM15909
