Thermal Monitoring

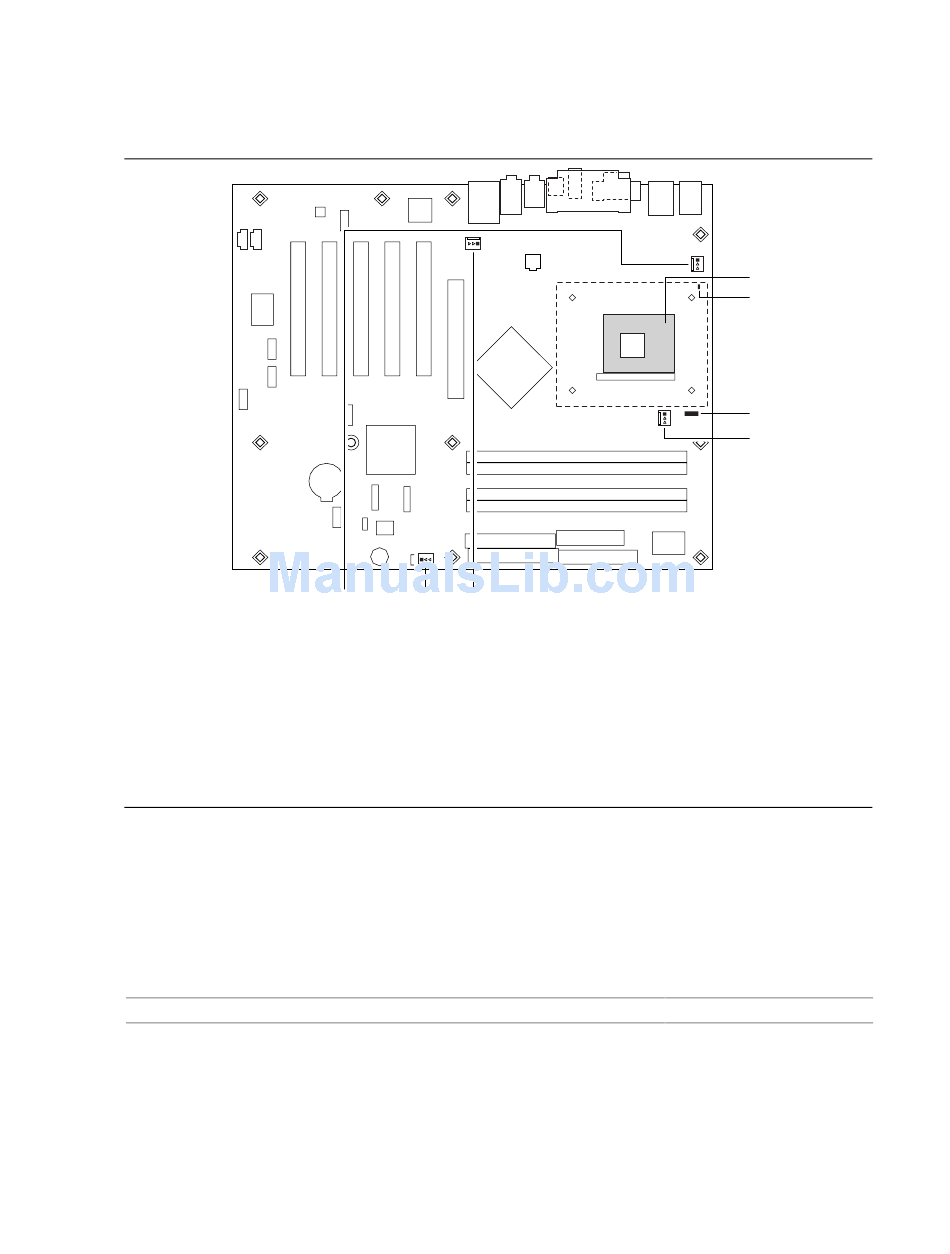

Figure 16 shows the location of the sensors and fan connectors.
A Thermal diode, located on processor die
B Remote ambient temperature sensor
C Ambient temperature sensor (internal to hardware monitoring and fan control ASIC)
D Processor fan
E Rear chassis fan
F Front chassis fan
G Voltage regulator fan

1.12.2 Fan Monitoring

Fan monitoring can be implemented using Intel
party software.
For information about
The functions of the fan connectors
42
3 1
1 3
G F E
Figure 16. Thermal Monitoring
®
Active Monitor, LANDesk* software, or third-
1
3
A
B
C
1
3
D
OM15901
Refer to
Section 1.13.2.2, page 47
