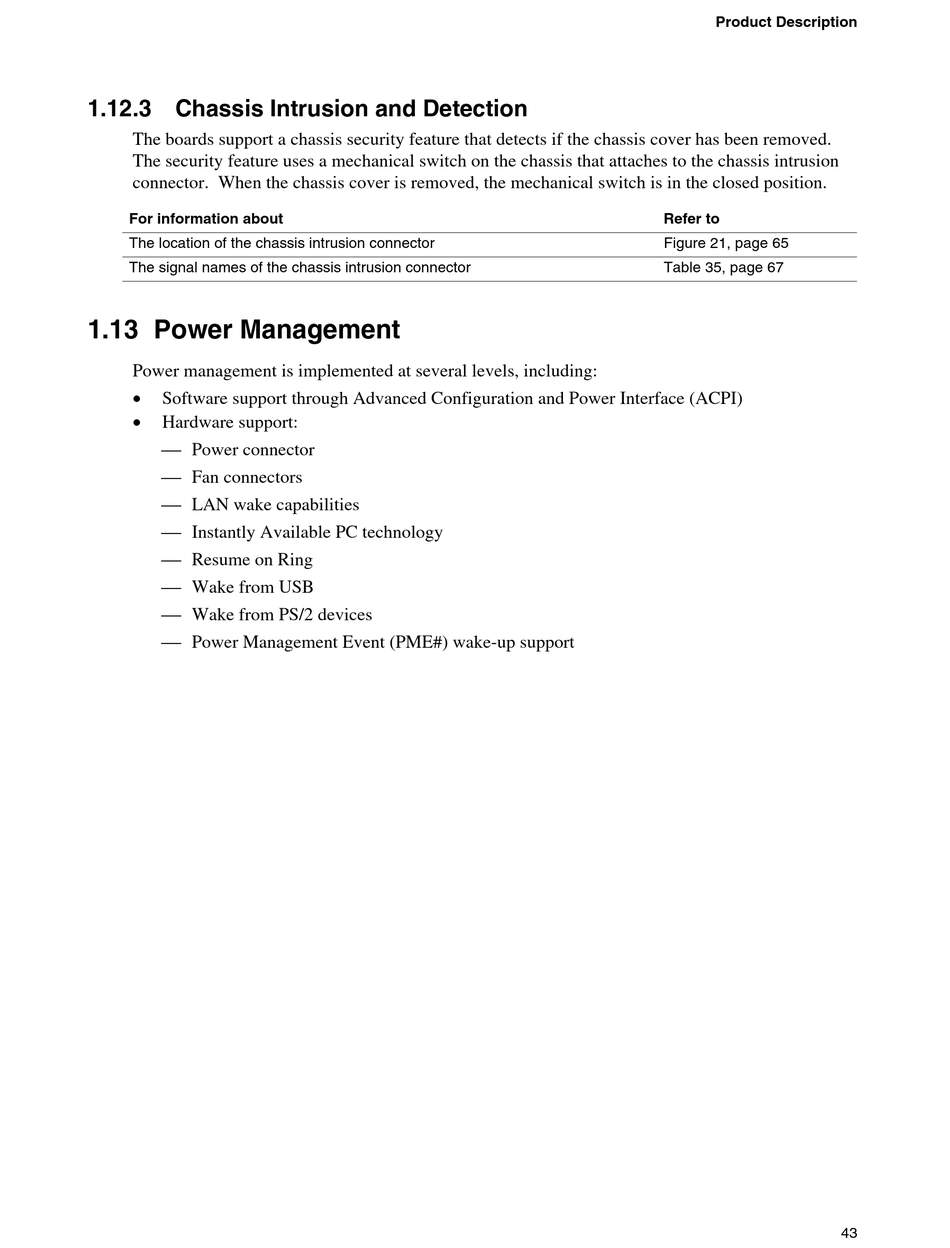

1.12.3 Chassis Intrusion and Detection

The boards support a chassis security feature that detects if the chassis cover has been removed.
The security feature uses a mechanical switch on the chassis that attaches to the chassis intrusion
connector. When the chassis cover is removed, the mechanical switch is in the closed position.
For information about
The location of the chassis intrusion connector
The signal names of the chassis intrusion connector

1.13 Power Management

Power management is implemented at several levels, including:
•
Software support through Advanced Configuration and Power Interface (ACPI)
•
Hardware support:
 Power connector
 Fan connectors
 LAN wake capabilities
 Instantly Available PC technology
 Resume on Ring
 Wake from USB
 Wake from PS/2 devices
 Power Management Event (PME#) wake-up support
Product Description
Refer to
Figure 21, page 65
Table 35, page 67
43
