Example Of Dual Channel Configuration Without Dynamic Mode - Intel BLKD865PERL Technical Product Specification

Dual Channel Configuration without Dynamic Mode
Channel A - DIMM 0
Channel A - DIMM 1
Throughput
Level Configuration
Highest Dual Channel with Dynamic Mode
Dual Channel without Dynamic Mode
Single Channel with Dynamic Mode
Lowest Single Channel without Dynamic Mode

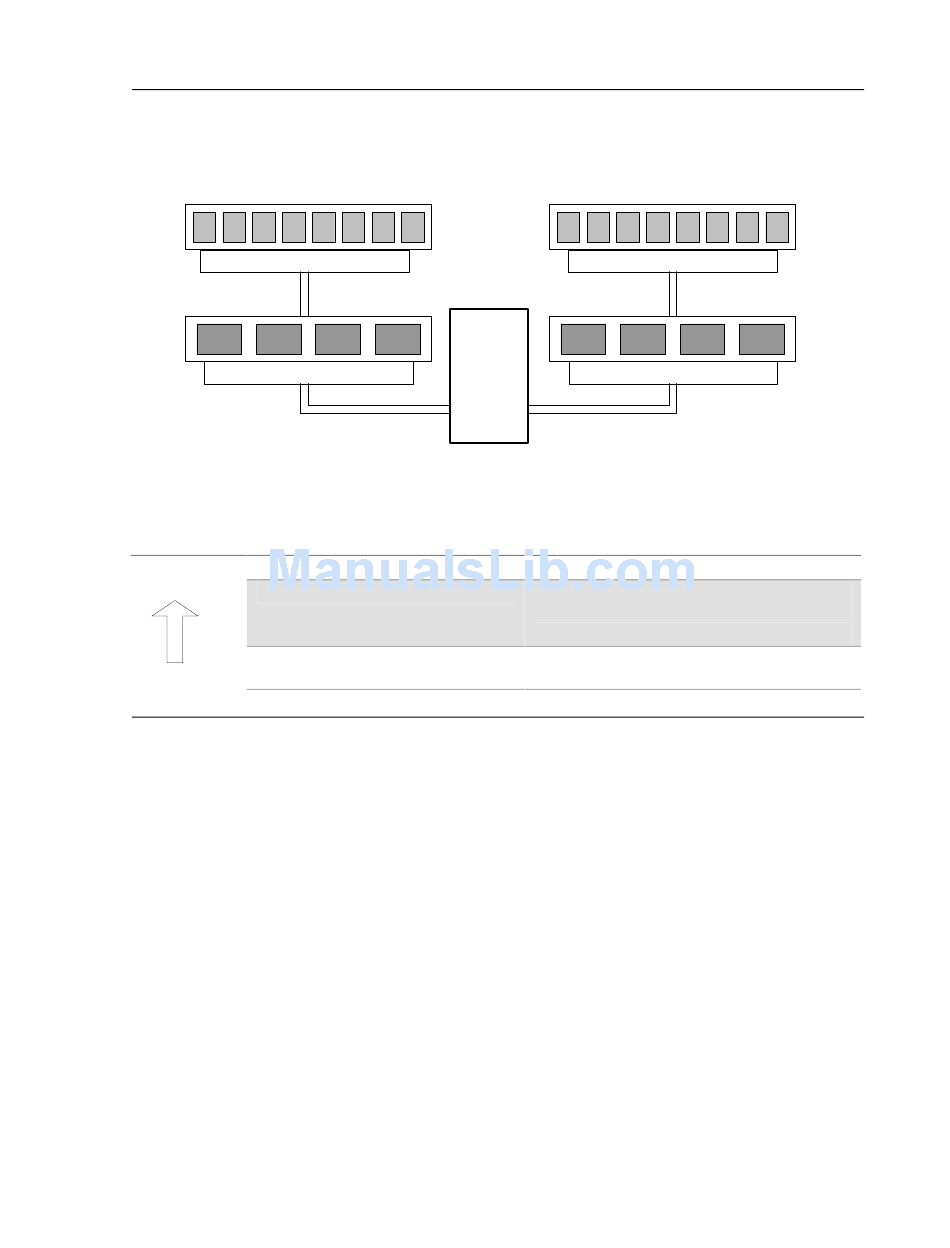

Figure 5. Example of Dual Channel Configuration without Dynamic Mode
- DIMMs not matched within channel
- DIMMs match Channel A to Channel B
Intel
82865PE
MCH
Channel B - DIMM 0
Channel B - DIMM 1
Characteristics
All DIMMs matched
• DIMMs matched from Channel A to
Channel B
• DIMMs not matched within channels
Single DIMM or DIMMs matched within a
channel
DIMMs not matched
Product Description
OM15986
