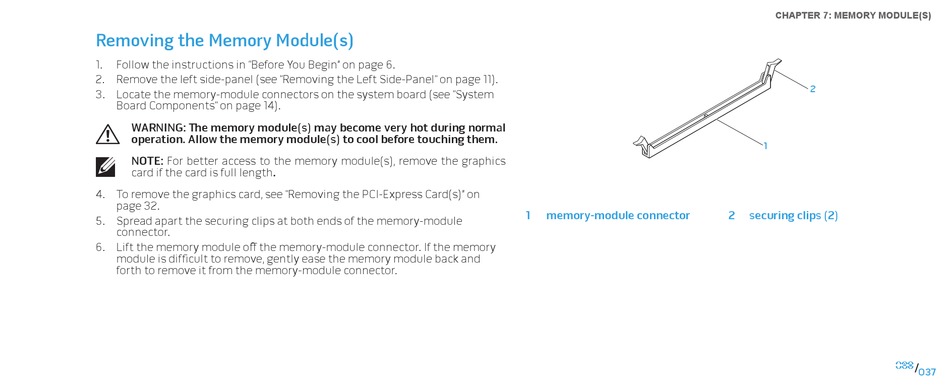

Removing the Memory Module(s)

1. Follow the instructions in "Before You Begin" on page
2. Remove the left side-panel (see "Removing the Left Side-Panel" on page
3. Locate the memory-module connectors on the system board (see "System
Board Components" on page 14).
WARNING: The memory module(s) may become very hot during normal
operation. Allow the memory module(s) to cool before touching them.
NOTE: For better access to the memory module(s), remove the graphics
card if the card is full length.
4. To remove the graphics card, see "Removing the PCI-Express Card(s)" on
page 32.
5. Spread apart the securing clips at both ends of the memory-module
connector.
6. Lift the memory module off the memory-module connector. If the memory
module is difficult to remove, gently ease the memory module back and
forth to remove it from the memory-module connector.
6.
11).
1 memory-module connector
CHAPTER 7: MEMORY MODULE(S)
2
1
2 securing clips (2)
