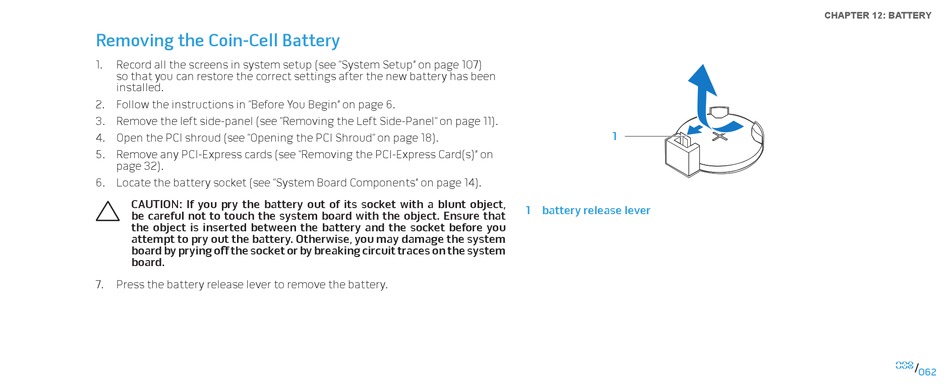

Removing the Coin-Cell Battery

1. Record all the screens in system setup (see "System Setup" on page
so that you can restore the correct settings after the new battery has been
installed.
2. Follow the instructions in "Before You Begin" on page
3. Remove the left side-panel (see "Removing the Left Side-Panel" on page
4. Open the PCI shroud (see "Opening the PCI Shroud" on page
5. Remove any PCI-Express cards (see "Removing the PCI-Express Card(s)" on
page 32).
6. Locate the battery socket (see "System Board Components" on page
CAUTION: If you pry the battery out of its socket with a blunt object,
be careful not to touch the system board with the object. Ensure that
the object is inserted between the battery and the socket before you
attempt to pry out the battery. Otherwise, you may damage the system
board by prying off the socket or by breaking circuit traces on the system
board.
7. Press the battery release lever to remove the battery.
107)
6.
11).
18).
14).
1 battery release lever
1
CHAPTER 12: BATTERY
