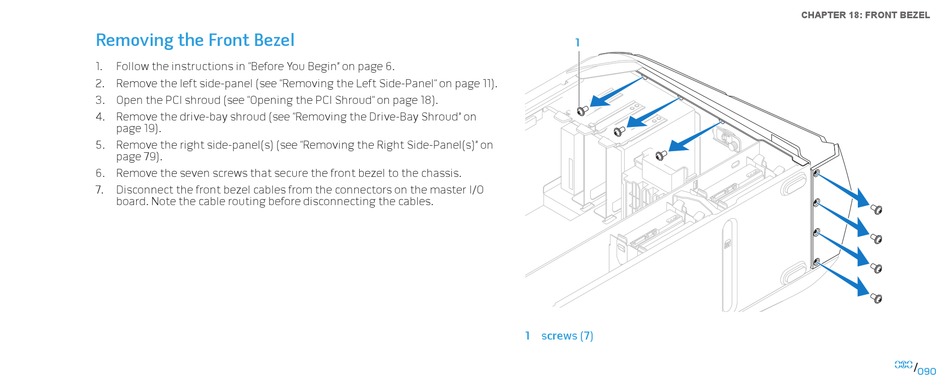

Removing the Front Bezel

1. Follow the instructions in "Before You Begin" on page
2. Remove the left side-panel (see "Removing the Left Side-Panel" on page
3. Open the PCI shroud (see "Opening the PCI Shroud" on page
4. Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on
page 19).
5. Remove the right side-panel(s) (see "Removing the Right Side-Panel(s)" on
page 79).
6. Remove the seven screws that secure the front bezel to the chassis.
7. Disconnect the front bezel cables from the connectors on the master I/O
board. Note the cable routing before disconnecting the cables.
6.
11).
18).
1 screws (7)
1
CHAPTER 18: FRONT BEZEL
