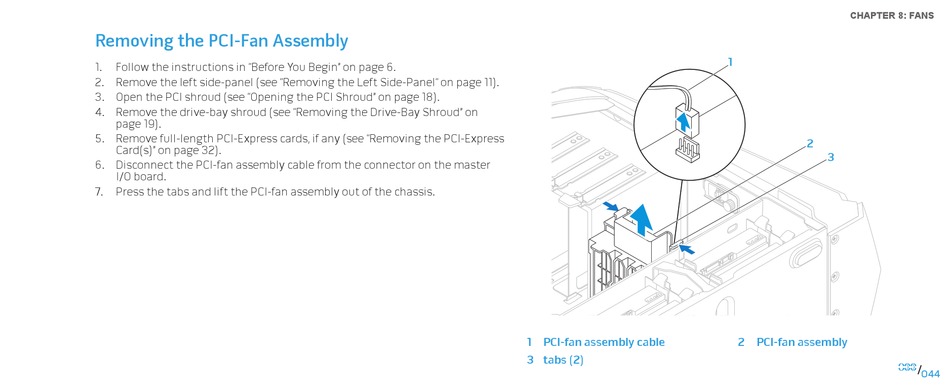

Removing the PCI-Fan Assembly

1. Follow the instructions in "Before You Begin" on page
2. Remove the left side-panel (see "Removing the Left Side-Panel" on page
3. Open the PCI shroud (see "Opening the PCI Shroud" on page
4. Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on
page 19).
5. Remove full-length PCI-Express cards, if any (see "Removing the PCI-Express
Card(s)" on page 32).
6. Disconnect the PCI-fan assembly cable from the connector on the master
I/O board.
7. Press the tabs and lift the PCI-fan assembly out of the chassis.
6.
11).
18).
1 PCI-fan assembly cable
3 tabs (2)
CHAPTER 8: FANS
1
2
3
2 PCI-fan assembly
