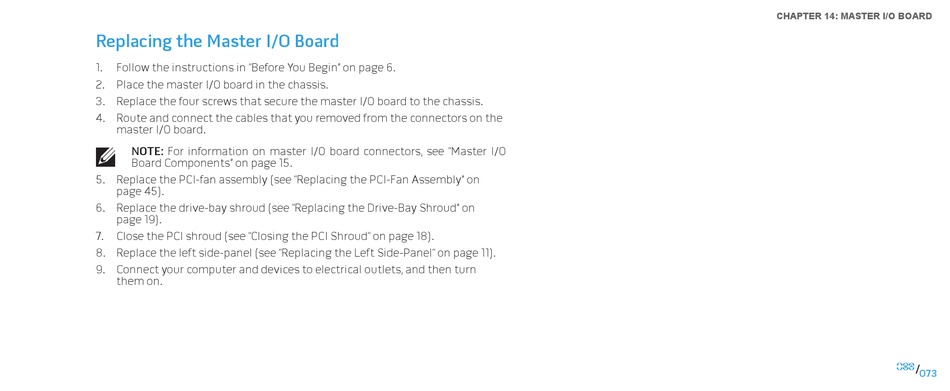

Replacing the Master I/O Board

1. Follow the instructions in "Before You Begin" on page
2. Place the master I/O board in the chassis.
3. Replace the four screws that secure the master I/O board to the chassis.
4. Route and connect the cables that you removed from the connectors on the
master I/O board.
NOTE: For information on master I/O board connectors, see "Master I/O
Board Components" on page 15.
5. Replace the PCI-fan assembly (see "Replacing the PCI-Fan Assembly" on
page 45).
6. Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on
page 19).
7. Close the PCI shroud (see "Closing the PCI Shroud" on page
8. Replace the left side-panel (see "Replacing the Left Side-Panel" on page
9. Connect your computer and devices to electrical outlets, and then turn
them on.
6.
18).
11).
