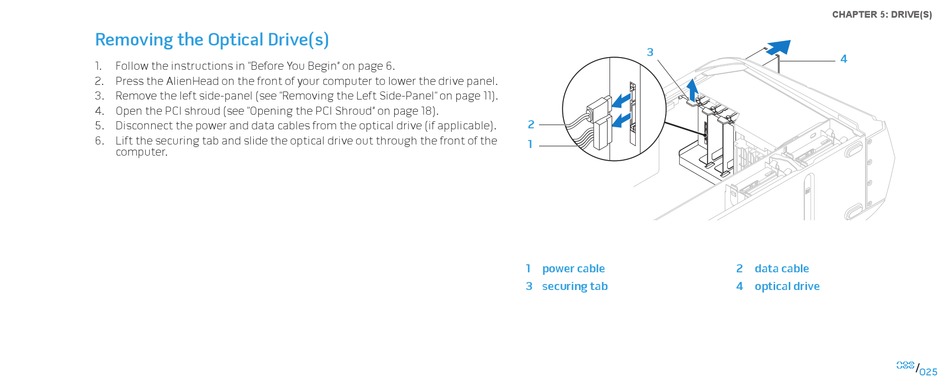

Removing the Optical Drive(s)

1. Follow the instructions in "Before You Begin" on page
2. Press the AlienHead on the front of your computer to lower the drive panel.
3. Remove the left side-panel (see "Removing the Left Side-Panel" on page
4. Open the PCI shroud (see "Opening the PCI Shroud" on page
5. Disconnect the power and data cables from the optical drive (if applicable).
6. Lift the securing tab and slide the optical drive out through the front of the
computer.
6.
11).
18).
2
1
1 power cable
3 securing tab
3
2 data cable
4 optical drive
CHAPTER 5: DRIVE(S)
4
025
/
025
