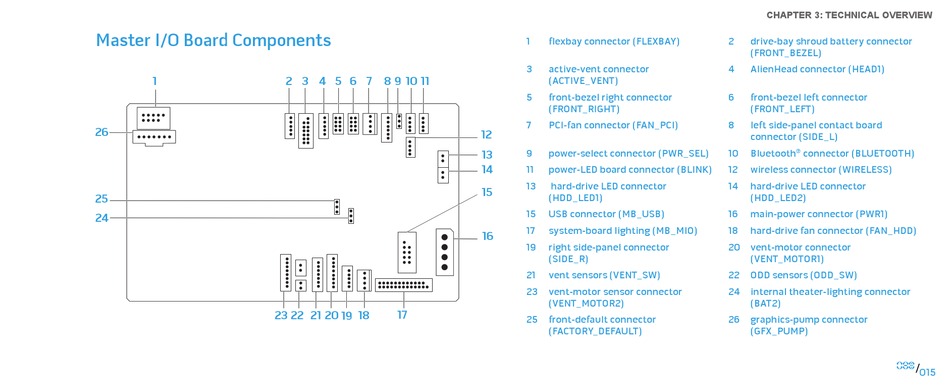

Master I/O Board Components

1
26
25
24
2 4
3 5 6 7 8 9 10 11
17
23 22 21 20 19 18
1 flexbay connector (FLEXBAY)
3 active-vent connector
(ACTIVE_VENT)
5 front-bezel right connector
(FRONT_RIGHT)
7 PCI-fan connector (FAN_PCI)
12
9 power-select connector (PWR_SEL)
13
14
11 power-LED board connector (BLINK)
13 hard-drive LED connector
15
(HDD_LED1)
15 USB connector (MB_USB)
17 system-board lighting (MB_MIO)
16
19 right side-panel connector
(SIDE_R)
21 vent sensors (VENT_SW)
23 vent-motor sensor connector
(VENT_MOTOR2)
25 front-default connector
(FACTORY_DEFAULT)
CHAPTER 3: TECHNICAL OVERVIEW
2 drive-bay shroud battery connector
(FRONT_BEZEL)
4 AlienHead connector (HEAD1)
6 front-bezel left connector
(FRONT_LEFT)
8 left side-panel contact board
connector (SIDE_L)
10 Bluetooth connector (BLUETOOTH)
®
12 wireless connector (WIRELESS)
14 hard-drive LED connector
(HDD_LED2)
16 main-power connector (PWR1)
18 hard-drive fan connector (FAN_HDD)
20 vent-motor connector
(VENT_MOTOR1)
22 ODD sensors (ODD_SW)
24 internal theater-lighting connector
(BAT2)
26 graphics-pump connector
(GFX_PUMP)
