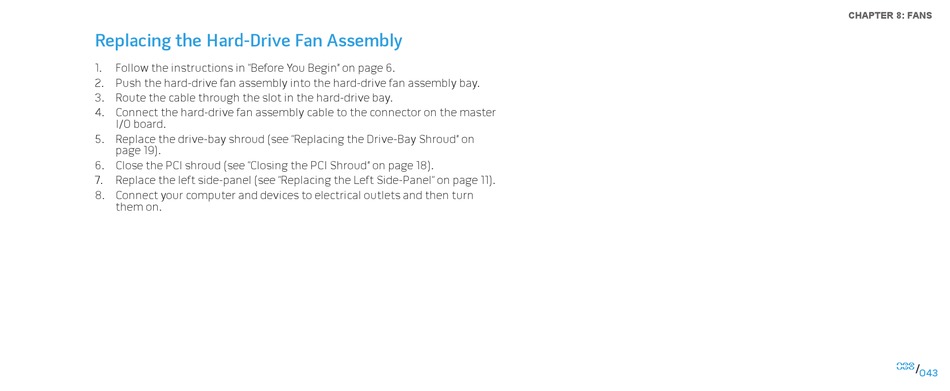

Replacing the Hard-Drive Fan Assembly
1.
Follow the instructions in "Before You Begin" on page
2.
Push the hard-drive fan assembly into the hard-drive fan assembly bay.
3.
Route the cable through the slot in the hard-drive bay.
4.
Connect the hard-drive fan assembly cable to the connector on the master
I/O board.
5.
Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on
page 19).
6.
Close the PCI shroud (see "Closing the PCI Shroud" on page
7.
Replace the left side-panel (see "Replacing the Left Side-Panel" on page
8.
Connect your computer and devices to electrical outlets and then turn
them on.
6.
18).
11).
CHAPTER 8: FANS
043
/
043
