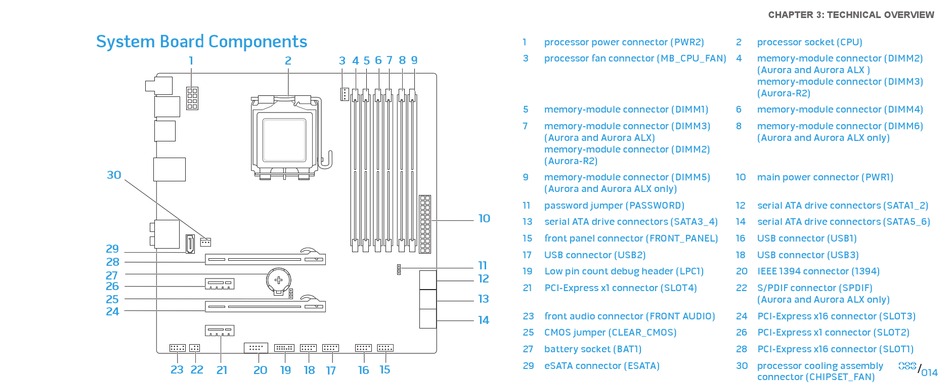

System Board Components

1
30
29
28
27
26
25
24
23 22
21 20
2 3 4 5 6 7 8 9
15
19 18 17 16
1 processor power connector (PWR2)
3 processor fan connector (MB_CPU_FAN) 4
5 memory-module connector (DIMM1)
7 memory-module connector (DIMM3)
(Aurora and Aurora ALX)
memory-module connector (DIMM2)
(Aurora-R2)
9 memory-module connector (DIMM5)
(Aurora and Aurora ALX only)
11 password jumper (PASSWORD)
10
13 serial ATA drive connectors (SATA3_4)
15 front panel connector (FRONT_PANEL)
17 USB connector (USB2)
11
19 Low pin count debug header (LPC1)
12
21 PCI-Express x1 connector (SLOT4)
13
23 front audio connector (FRONT AUDIO)
14
25 CMOS jumper (CLEAR_CMOS)
27 battery socket (BAT1)
29 eSATA connector (ESATA)
CHAPTER 3: TECHNICAL OVERVIEW
2 processor socket (CPU)
memory-module connector (DIMM2)
(Aurora and Aurora ALX )
memory-module connector (DIMM3)
(Aurora-R2)
6 memory-module connector (DIMM4)
8 memory-module connector (DIMM6)
(Aurora and Aurora ALX only)
10 main power connector (PWR1)
12 serial ATA drive connectors (SATA1_2)
14 serial ATA drive connectors (SATA5_6)
16 USB connector (USB1)
18 USB connector (USB3)
20 IEEE 1394 connector (1394)
22 S/PDIF connector (SPDIF)
(Aurora and Aurora ALX only)
24 PCI-Express x16 connector (SLOT3)
26 PCI-Express x1 connector (SLOT2)
28 PCI-Express x16 connector (SLOT1)
30 processor cooling assembly 014
connector (CHIPSET_FAN)
/
