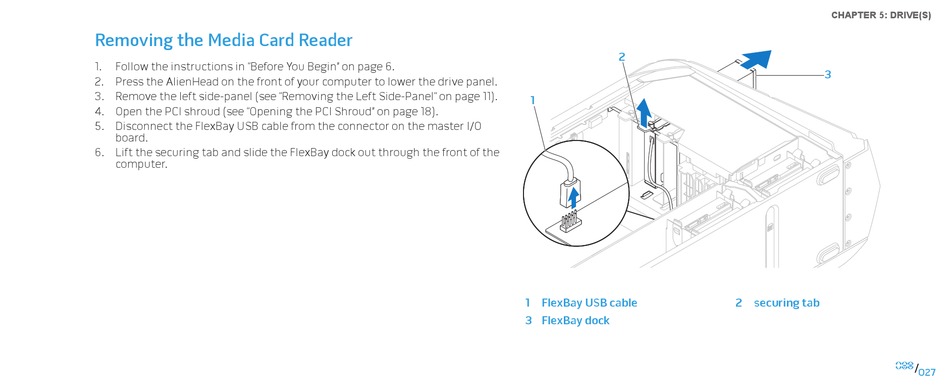

Removing the Media Card Reader

1. Follow the instructions in "Before You Begin" on page
2. Press the AlienHead on the front of your computer to lower the drive panel.
3. Remove the left side-panel (see "Removing the Left Side-Panel" on page
4. Open the PCI shroud (see "Opening the PCI Shroud" on page
5. Disconnect the FlexBay USB cable from the connector on the master I/O
board.
6. Lift the securing tab and slide the FlexBay dock out through the front of the
computer.
6.
11).
1
18).
1 FlexBay USB cable
3 FlexBay dock
2
2 securing tab
CHAPTER 5: DRIVE(S)
3
