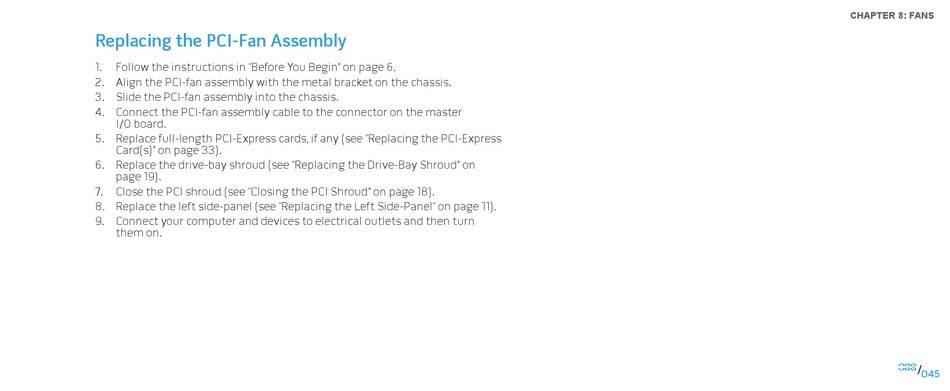

Replacing the PCI-Fan Assembly

1. Follow the instructions in "Before You Begin" on page
2. Align the PCI-fan assembly with the metal bracket on the chassis.
3. Slide the PCI-fan assembly into the chassis.
4. Connect the PCI-fan assembly cable to the connector on the master
I/O board.
5. Replace full-length PCI-Express cards, if any (see "Replacing the PCI-Express
Card(s)" on page 33).
6. Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on
page 19).
7. Close the PCI shroud (see "Closing the PCI Shroud" on page
8. Replace the left side-panel (see "Replacing the Left Side-Panel" on page
9. Connect your computer and devices to electrical outlets and then turn
them on.
6.
18).
11).
CHAPTER 8: FANS
