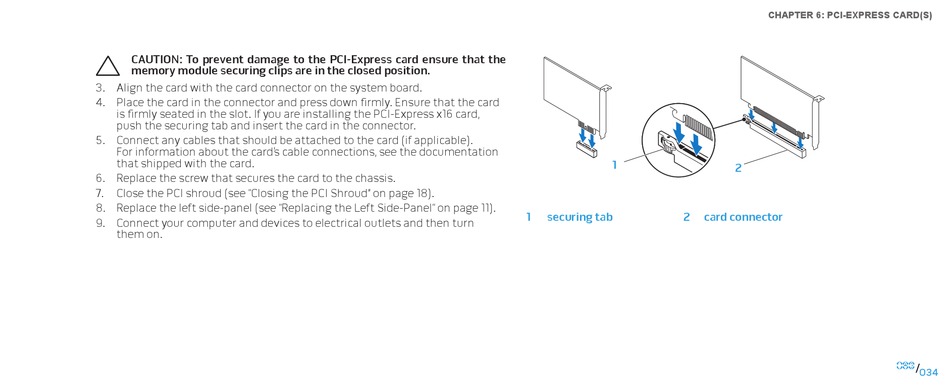

Dell ALIENWARE AURORA - GAMING MACHINE - ALIENWARE AURORA Service Manual page 34

CAUTION: To prevent damage to the PCI-Express card ensure that the
memory module securing clips are in the closed position.
3. Align the card with the card connector on the system board.
4. Place the card in the connector and press down firmly. Ensure that the card
is firmly seated in the slot. If you are installing the PCI-Express x16 card,
push the securing tab and insert the card in the connector.
5. Connect any cables that should be attached to the card (if applicable).
For information about the card' s cable connections, see the documentation
that shipped with the card.
6. Replace the screw that secures the card to the chassis.
7. Close the PCI shroud (see "Closing the PCI Shroud" on page
8. Replace the left side-panel (see "Replacing the Left Side-Panel" on page
9. Connect your computer and devices to electrical outlets and then turn
them on.
18).
11).
1 securing tab
CHAPTER 6: PCI-EXPRESS CARD(S)
1
2
2 card connector
