System Overview
The Hayward Pro Logic is a multifunction pool controller used to fully manage your pool/spa system. The Pro
Logic can control pumps, valves, lighting, heaters, and chlorination. Although the Pro Logic is easy to use, it is
important to completely read through this operating manual before attempting to operate the control.
G LDLIN E
Optional Wireless CO N T RO LS I N C.
POOL VALV ES SPA
ON FILTER OFF
Spaside Remote
ON HE ATE R OFF
ON L IGH TS OFF
ON OFF
AU X1
ON OFF
AU X2
Optional
Wireless Base
Optional Wireless
Receiver
Remote Display
Keypad
INPUT
Optional Wired
Remote Display
Keypad
(maximum of three)
External
Input
Water
Air
Temperature
Sensors
Solar
Spa
(for dual equip)
Chlorinator
Flow Switch
Circuit Breaker
Subpanel 240 VAC
Power
EXPANSION UNIT
(used with PS-16 only)
NOTE: This manual assumes that the Pro Logic has been wired and configured according to the Installation
Manual. Aspects of the Pro Logic that pertain to system setup are not covered in this manual.

Automation

The PL-PS-4 (-8, -16) can control up to 4 (8, 16) high voltage (120/240V) pieces of equipment, up to 4 (8 for the
PS-16) automatic valve actuators, and 2 conventional heaters plus a solar heater. Both manual and automatic
(programmed) operation are available. All of the control functions can be programmed at a display/keypad which
is part of the main unit (typically located near the pool equipment) or at one or more remote display/keypads.

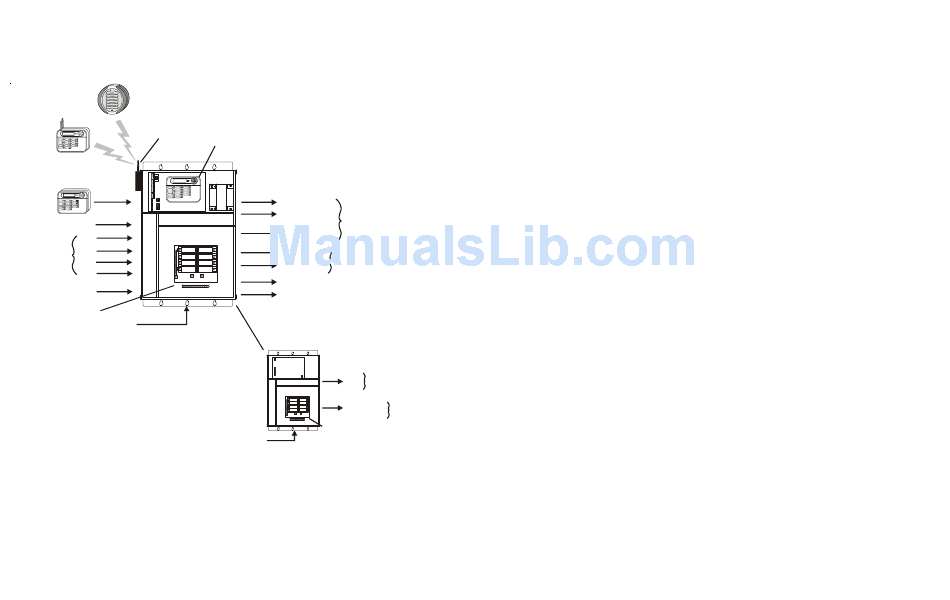

PS-4 (-8, -16) MAIN UNIT
Main Display
Keypad
OUTPUT
Filter Pump
Lights
120/240V
Relays
(2 for PS-4)
Aux
(6 for PS-8, PS-16)
Pool/Spa Suction &
Return Valves 24V Valve
Actuators
General Purpose
Valves (2)
Heaters (2)
Chlorinator Cell
OUTPUT
120/240V
Aux (8)
Relays
General Purpose
Valves (4)
Circuit Breaker
Subpanel
240 VAC
Power
