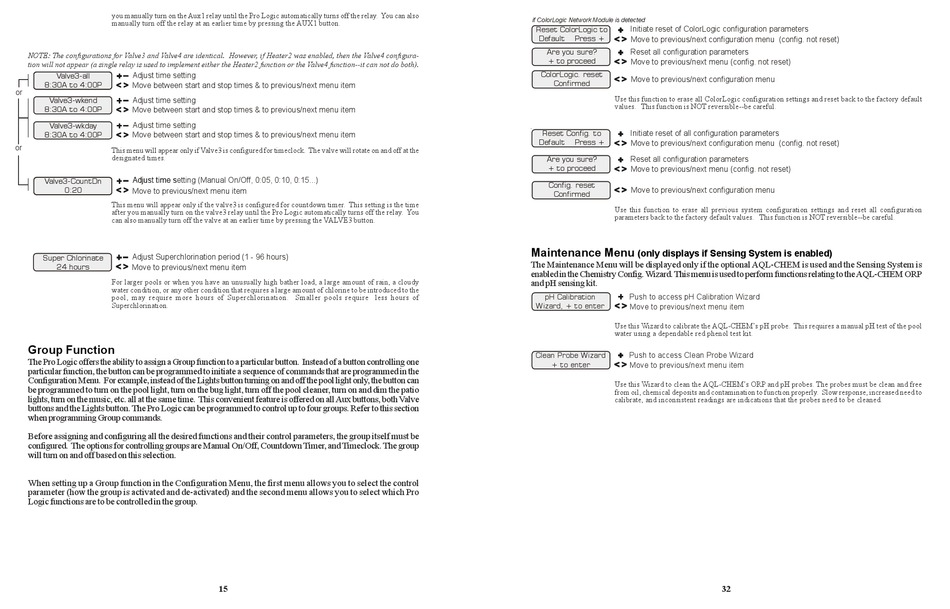

Group Function - Hayward Pro Logic Operation Manual

you manually turn on the Aux1 relay until the Pro Logic automatically turns off the relay. You can also
manually turn off the relay at an earlier time by pressing the AUX1 button.
NOTE: The configurations for Valve3 and Valve4 are identical. However, if Heater2 was enabled, then the Valve4 configura-
tion will not appear (a single relay is used to implement either the Heater2 function or the Valve4 function--it can not do both).
Set Day and Time Valve3-all Adjust time setting
Wednesday 10:37P 8:30A to 4:00P
Move between start and stop times & to previous/next menu item
or
Valve3-wkend Adjust time setting
8:30A to 4:00P Move between start and stop times & to previous/next menu item
Valve3-wkday Adjust time setting
8:30A to 4:00P
Move between start and stop times & to previous/next menu item
or
This menu will appear only if Valve3 is configured for timeclock. The valve will rotate on and off at the
designated times.
Adjust time s Adjust time setting (Manual On/Off, 0:05, 0:10, 0:15...)
Set Day and Time Valve3- CountDn
Wednesday 10:37P 0:20
Move to previous/next menu item
This menu will appear only if the valve3 is configured for countdown timer. This setting is the time
after you manually turn on the valve3 relay until the Pro Logic automatically turns off the relay. You
can also manually turn off the valve at an earlier time by pressing the VALVE3 button.
Adjust Superchlorination period (1 - 96 hours)
Super Chlorinate
24 hours
Move to previous/next menu item
For larger pools or when you have an unusually high bather load, a large amount of rain, a cloudy
water condition, or any other condition that requires a large amount of chlorine to be introduced to the
pool, may require more hours of Superchlorination. Smaller pools require less hours of
Superchlorination.

Group Function

The Pro Logic offers the ability to assign a Group function to a particular button. Instead of a button controlling one
particular function, the button can be programmed to initiate a sequence of commands that are programmed in the
Configuration Menu. For example, instead of the Lights button turning on and off the pool light only, the button can
be programmed to turn on the pool light, turn on the bug light, turn off the pool cleaner, turn on and dim the patio
lights, turn on the music, etc. all at the same time. This convenient feature is offered on all Aux buttons, both Valve
buttons and the Lights button. The Pro Logic can be programmed to control up to four groups. Refer to this section
when programming Group commands.
Before assigning and configuring all the desired functions and their control parameters, the group itself must be
configured. The options for controlling groups are Manual On/Off, Countdown Timer, and Timeclock. The group
will turn on and off based on this selection.
When setting up a Group function in the Configuration Menu, the first menu allows you to select the control
parameter (how the group is activated and de-activated) and the second menu allows you to select which Pro
Logic functions are to be controlled in the group.
15
if ColorLogic Network Module is detected
Reset ColorLogic to Initiate reset of ColorLogic configuration parameters
Default Press +
Move to previous/next configuration menu (config. not reset)
Are you sure? Reset all configuration parameters
+ to proceed
Move to previous/next menu (config. not reset)
ColorLogic. reset
Move to previous/next configuration menu
Confirmed
Use this function to erase all ColorLogic configuration settings and reset back to the factory default
values. This function is NOT reversible--be careful.
Reset Config. to Initiate reset of all configuration parameters
Default Press +
Move to previous/next configuration menu (config. not reset)
Are you sure? Reset all configuration parameters
+ to proceed
Move to previous/next menu (config. not reset)
Config. reset
Move to previous/next configuration menu
Confirmed
Use this function to erase all previous system configuration settings and reset all configuration
parameters back to the factory default values. This function is NOT reversible--be careful.
Maintenance Menu
(only displays if Sensing System is enabled)
The Maintenance Menu will be displayed only if the optional AQL-CHEM is used and the Sensing System is
enabled in the Chemistry Config. Wizard. This menu is used to perform functions relating to the AQL-CHEM ORP
and pH sensing kit.
pH Calibration Push to access pH Calibration Wizard
Wizard, + to enter
Move to previous/next menu item
Use this Wizard to calibrate the AQL-CHEM's pH probe. This requires a manual pH test of the pool
water using a dependable red phenol test kit.
Clean Probe Wizard Push to access Clean Probe Wizard
+ to enter
Move to previous/next menu item
Use this Wizard to clean the AQL-CHEM's ORP and pH probes. The probes must be clean and free
from oil, chemical deposits and contamination to function properly. Slow response, increased need to
calibrate, and inconsistent readings are indications that the probes need to be cleaned.
