The Aqua Logic is a multifunction pool controller used to fully manage your pool/spa system. The Aqua
Logic can control pumps, valves, lighting, heaters, and chlorination. Although the Aqua Logic is easy to
use, it is important to completely read through this operating manual before attempting to operate the
control.
Optional
Remote Display
Keypad
(maximum of three)
Water
Temperature
Sensors
Optional
Flow Switch
NOTE: This manual assumes that the Aqua Logic has been wired and configured according to the Instal-
lation Manual. Aspects of the Aqua Logic that pertain to system setup are not covered in this manual.
Automation
The AQL-P-4 can control up to 4 high voltage (120/240V) pieces of equipment, up to 3 automatic valve
actuators, and a conventional and solar heater. Both manual and automatic (programmed) operation are
available. All of the control functions can be programmed at a display/keypad which is part of the main unit
(typically located near the pool equipment) or at one or more remote display/keypads.

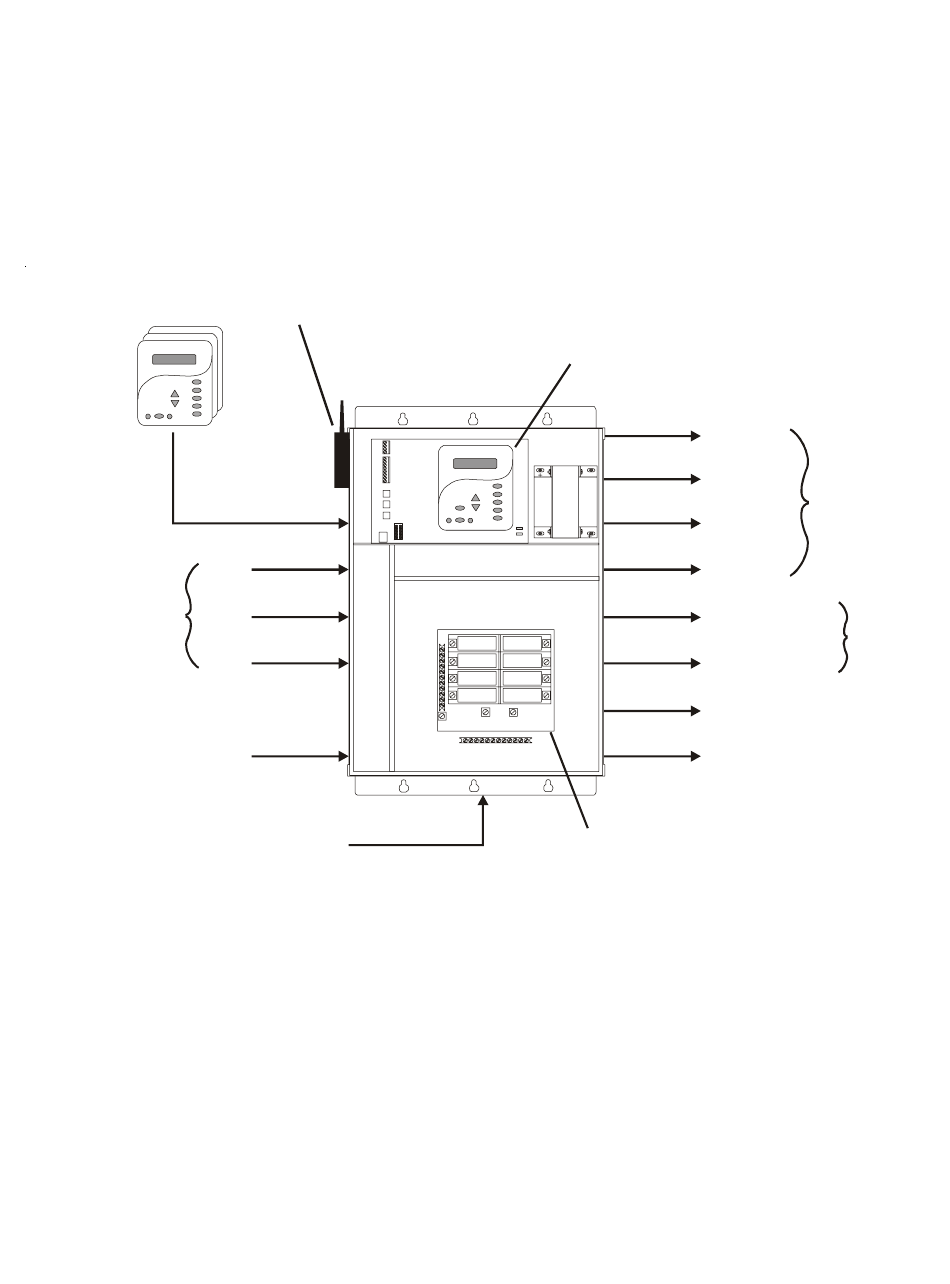

System Overview
Optional
Wireless Base
Receiver
Air
Solar
240 VAC
Power
Main Display
Keypad
Circuit Breaker
Subpanel
1
Filter Pump
Lights
120/240V
Relays
Aux 1
Aux 2
Pool/Spa Suction &
Return Valves
24V Valve
Actuators
Valve 3
Heater
Optional
Chlorinator Cell
