Hayward Aqua Rite® Pro Installation And Operation Manual
Model: aql-chem-3 installation and operation
Hide thumbs
Also See for Aqua Rite® Pro:
- Installation and operation manual (7 pages) ,
- Owner's manual (24 pages)
Table of Contents
Advertisement
T T T T T ot ot ot ot ot al al al al al P P P P P oo
Aqua Rite Pro
Aqua Rite Pro
Aqua Rite Pro
Aqua Rite Pro
Aqua Rite Pro
Installation and Operation
oo
oo l l l l l C C C C C hemi
oo
hemi
hemi s s s s s t t t t t r r r r r y y y y y
hemi
oo
hemi
for
and
Pro Logic
Pro Logic
Pro Logic
Pro Logic
Pro Logic
Manual
AQL-CHEM-3-120
AQL-CHEM-3-240
®
®
www.haywardnet.com
T M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayward Aqua Rite® Pro
Summary of Contents for Hayward Aqua Rite® Pro
- Page 1 T T T T T ot ot ot ot ot al al al al al P P P P P oo oo l l l l l C C C C C hemi hemi hemi s s s s s t t t t t r r r r r y y y y y hemi hemi Aqua Rite Pro...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Danger - tank will be filled with corrosive acid: • Poison - may be fatal if swallowed. Causes severe burns. Vapor harmful. • Keep away from children and pets. • Filling and service to be performed by pool service professional only. •... -
Page 3: Before You Begin
Before You Begin Compatibility The AQL-CHEM-3-120 (120VAC) and AQL-CHEM-3-240 (240VAC) are compatible with all Hayward Aqua Rite Pro and Pro Logic pool controls using an AQL-CHEM Sense & Dispense system. The AQL-CHEM-3 is not compatible with Aqua Rite or Aqua Logic controls. - Page 4 • If acid is not diluted properly or the feed pump is oversized, it will overshoot the pH correction. • Periodically use an independent pH and chlorine test kit to verify that pH is at a safe level, and that chlorine is at a safe level. If the AQL-CHEM probes are broken, depleted, dirty, fouled with oils, lotions, or other contaminants, they can report an inaccurate result to the system causing incorrect water chemistry, which at worst, could harm people or equipment.
-
Page 5: Installation

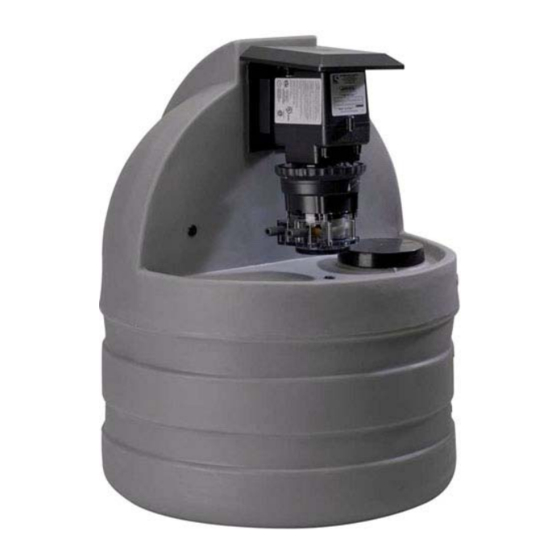

Installation Overview Installation of the AQL-CHEM-3 requires: • Setup and installation of the Stenner pump/tank • Installation of the Feed Tube and Injector assembly to the return plumbing • Connection of the AQL-CHEM-3 to the pool control • Programming the pool control for use with the AQL-CHEM-3 •... - Page 6 Setup of Stenner pump and tank Refer to the included Stenner manual for specific information on installing, securing and use of the pump and tank. Install the Feed Tube and Injector assembly into the return pipe 1. Drill 7/16" hole on the UNDERSIDE of the pool's return pipe AFTER the electro- lytic cell and flow switch.
- Page 7 3. Fasten the Injector assembly to the return pipe and install the Feed Tube Fasten the injector assembly to the return pipe by pushing the injector fitting into the 7/16" hole. Tighten the hose clamp until the assembly is snug against the return pipe. Do not overtighten.
-
Page 8: Installation Checklist
Installation Checklist Before the installation is finished, the following checklist should be completed. • Pool is properly balanced and functioning correctly • Unit is mounted securely and in accordance with local codes and regulations • The recommended amount of properly diluted acid has been added to the tank •... -
Page 9: Troubleshooting
Pro Logic At the local display/keypad: Press "Menu" until Configuration Menu is displayed. Hold both "<" and ">" for three seconds. Press ">" repeatedly until "Chemistry Config. Wizard" is displayed. Push "+" to start Wizard. Advance through the Wizard until pH Reduction Control is displayed. Use "+" or "-"... -
Page 11: Warranty Exclusions
Aqua Plus and SwimPure chlorination products to be free of defects in materials and workmanship, under normal use and service, for a period of three (3) years. Hayward/ Goldline also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under normal use and service for a period of one (1) year. - Page 12 Work less, play more with chemistry automation. 620 Division St. 092438A RevB Elizabeth, NJ 07207 Copyright © 2010 Hayward...
