Major Components of the Blade Server
You must remove the blade server from the SBCE unit and remove the cover to see the
components.

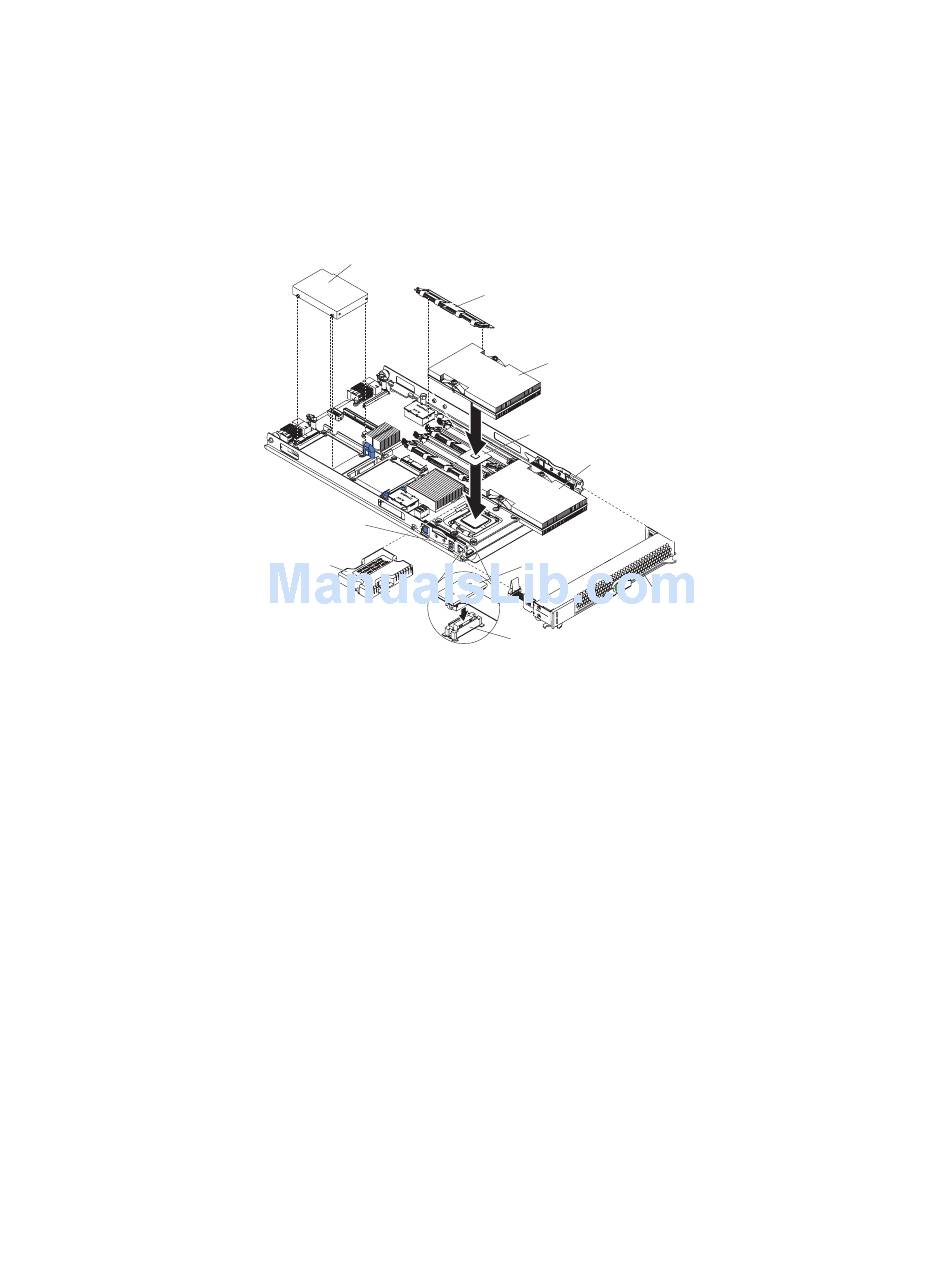

The following illustration shows the major components of the blade server.
Bezel-assembly
release (both sides)
Microprocessor
heat sink filler
8
SAS hard disk drives
DIMM
Microprocessor 2
Control-Panel
Cable
Control-panel
connector
Intel® Server Compute Blade SBXD132 Installation and User's Guide
Heat sink
Microprocessor 1
and heat sink
Bezel
AF000640
