7. Touch the static-protective package that contains the expansion card to any unpainted
metal surface on the SBCE unit or any unpainted metal surface on any other grounded
rack component; then, remove the expansion card from the package.
8. Install the expansion card bracket, if it is not already installed. Secure the bracket to
the system board with the screws from the option kit or from the removed drive tray.
9. Locate the expansion-card connector and orient the expansion card.
10. Slide the notch in the narrow end of the card into the raised hook on the expansion
card bracket; then, gently pivot the wide end of the card into the expansion-card
connectors.
Note: For device-driver and configuration information to complete the installation
11. If you have other options to install or remove, do so now; otherwise, go to
"Completing the Installation" on page

Installing an Expansion Unit

Note: If an Intel® Blade Storage Expansion Module for the Intel
SBXD132 is installed on a blade server with a Memory and I/O Expansion Blade,
installation of standard-form-factor or small-form-factor expansion cards in the Intel®
Blade Storage Expansion Module is not supported.

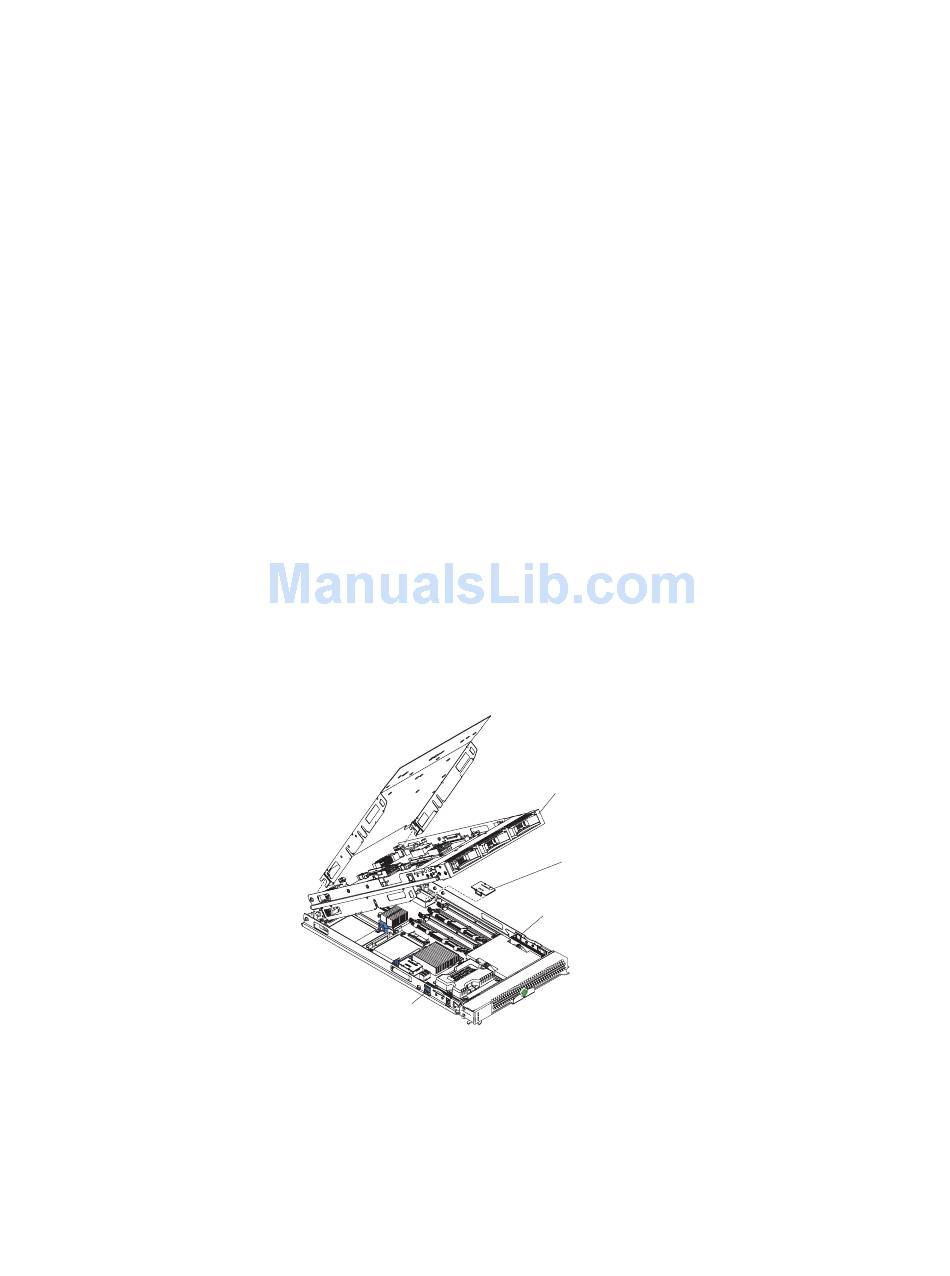

The following illustration shows how to install an expansion unit on a blade server.
To install an expansion unit, complete the following steps:
1. Read the safety information that begins on page
page
2. If you removed the blade bezel assembly, replace it now (see
Server Bezel Assembly" on page 33
Intel® Server Compute Blade SBXD132 Installation and User's Guide
of the expansion card, see the documentation that comes with the expansion
card.
Blade-Cover
Release
15.
32.
®
Server Compute Blade
Storage and I/O
Expansion Blade
Blade
Expansion
Connector
Cover
Blade-Cover
Release
AF000642
vii and "Installation Guidelines" on
for instructions).
"Installing the Blade
