a. Shut down the operating system and turn off the blade server; then, remove the
combined blade server and expansion unit from the SBCE unit (see the
documentation that comes with the blade server for more information).
b. Carefully lay the combined unit down on a flat, static-protective surface, with the
cover side up.
c. Remove the cover from the expansion unit (see
Cover" on page
3. Touch the static-protective package that contains the expansion card to any unpainted
metal surface on the SBCE unit or any unpainted metal surface on any other grounded
rack component; then, remove the expansion card from the package.
4. To install a small-form-factor expansion card, complete the following steps.

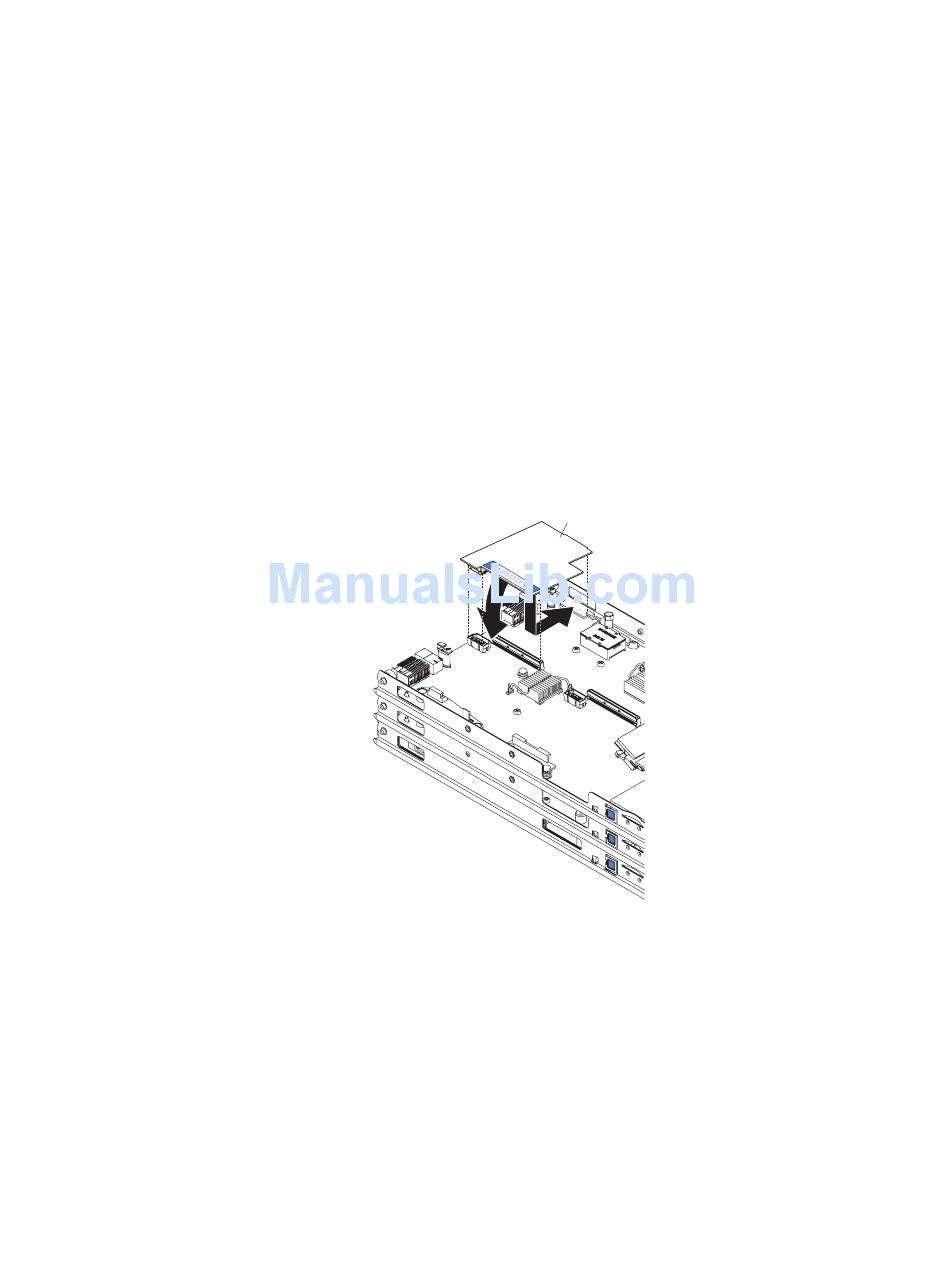

Note: The following illustration shows how to install a small-form-factor expansion
a. Locate the expansion-card connectors and orient the expansion card above them.
b. Slide the notch in the narrow end of the card into the raised hook on the
expansion-card bracket; then, gently pivot the card into the expansion-card
connectors.
48
44).
card in the rear connectors of the expansion unit; installing a card in the
connectors closest to the front of the expansion unit is similar.
Intel® Server Compute Blade SBXD132 Installation and User's Guide
"Removing the Expansion Unit
Small-form-factor
expansion card
