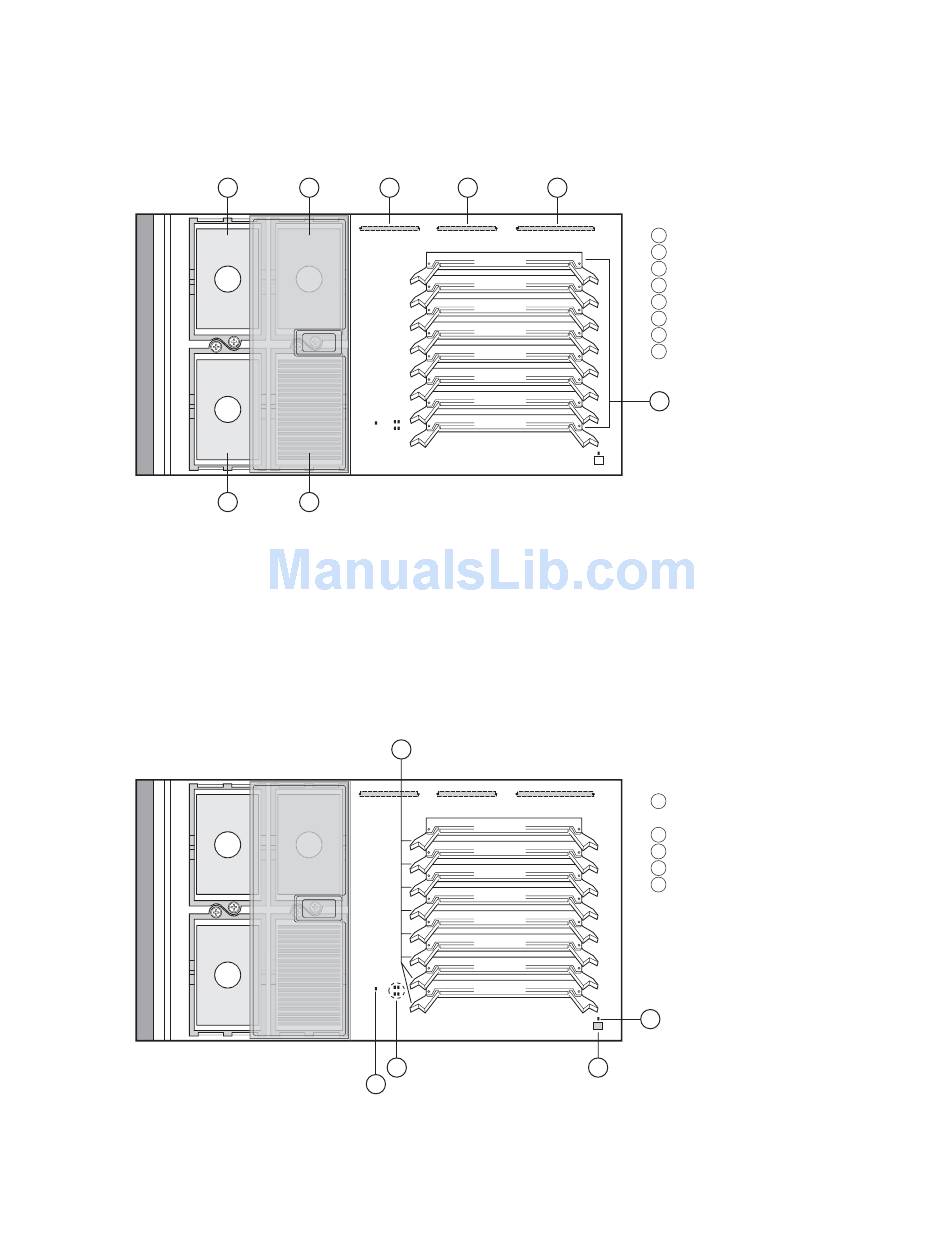

CPU board illustration

The following illustration shows the location of the system-board components, including connectors
for user-installable options.
A
H

CPU board LED locations

The following illustration shows the location of the LEDs and LED Power Switch on the system
board. You might need to refer to this illustration when solving problems with the blade server. You
need to remove the blade server from the system chassis, open the cover, and press the Light Path
Diagnostics* button to light any error LEDs that were turned on during processing. The LEDs will
remain lit for a maximum of 25 seconds.
Introduction
B
C
D
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
DIMM 7
DIMM 8
G
C
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
DIMM 7
DIMM 8
B
A
E
A
CPU 3
B
CPU 4
Flex Cable Connector
C
D
Flex Cable Connector
Flex Cable Connector
E
F
DIMMs
CPU 1
G
H
CPU 2
F
A
Processor Mismatch Error LED
(Amber)
B
Processor Error LEDs
C
DIMM Error LEDs
Light Path Diagnostics* Button
D
E
Light Path Diagnostics* LED
E
D
TP00448
