Jumpers

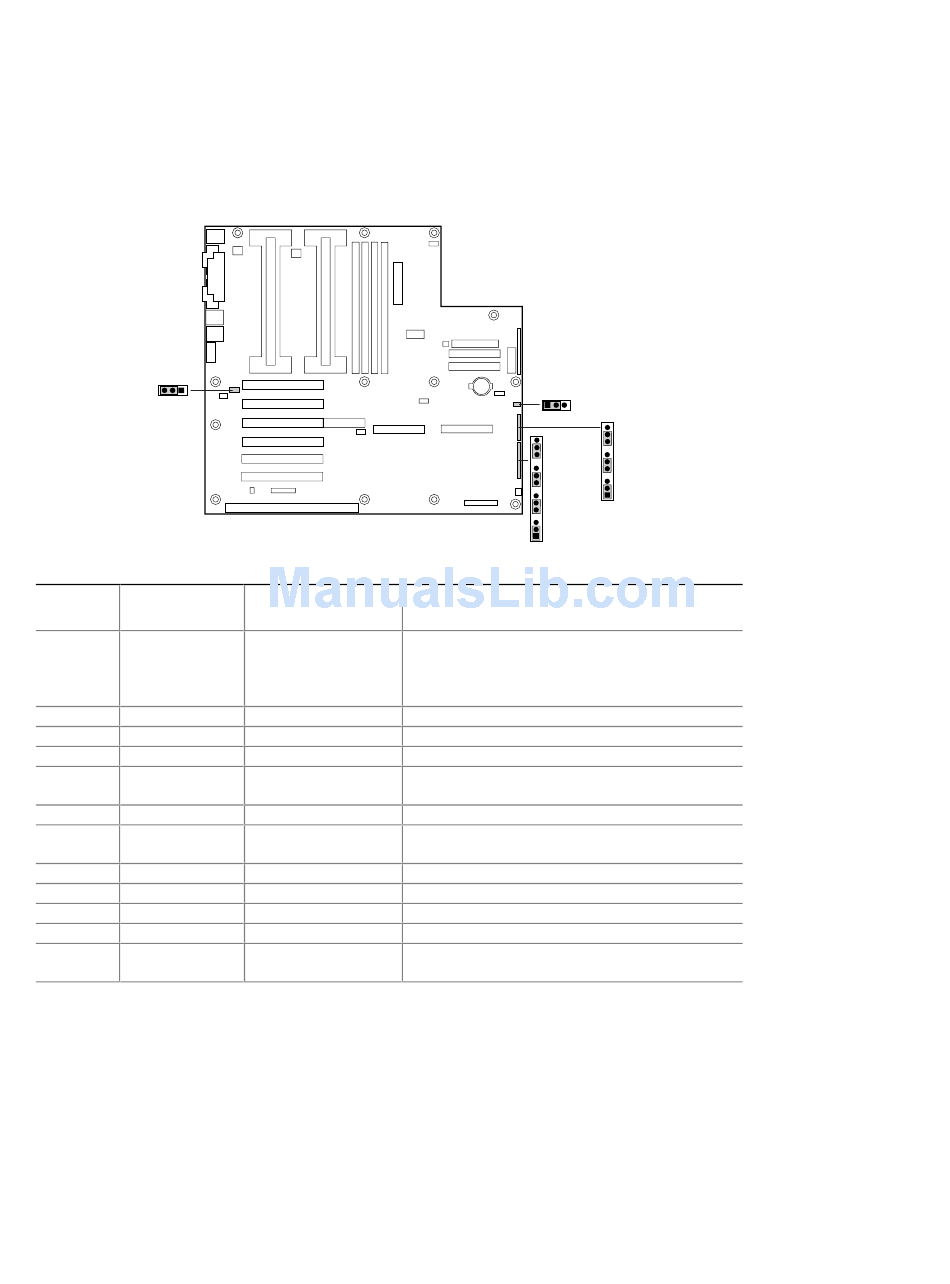

Nine 3-pin jumper blocks that control various configuration options, as shown in the figure below. Refer
to the ISP2150 2U Rack Server Platform Product Guide for more information.
WOL ENABLE
J5A2
1
Jumper Jumper Name
Block
J5A2 WOL ENABLE
J4J2 BMC WR EN
J3J1 FRB
J3J1 INT DET
J3J1 BMC FRC UP
J2J1 CMOS CLR
ISP2150 2U Rack Server Platform Quick Start Guide
Pins
(default in bold) What it does at system reset
1-2, Disabled Disables Wake On LAN
does not provide 0.8 A of +5 V Standby current,
you must move the WOL Enable jumper to this
position.
2-3, Enabled Enables Wake On LAN.
1-2, Protect BMC boot block is write protected.
2-3, Erase/Program BMC boot block is erasable and programmable.
1-2, Enable FRB operation is enabled (system boots from
processor 1 if processor 0 does not respond).
2-3, Disable FRB is disabled.
5-6, Enable Switch installed on chassis indicates when cover
has been removed.
6-7, Disable Chassis intrusion switch is bypassed.
9-10, Normal System boots normally.
10-11, Program System attempts to update BMC firmware.
1-2, Protect Preserves the contents of NVRAM.
2-3, Erase Replaces the contents of NVRAM with the
manufacturing default settings.
BMC
WR EN
J4J2
1
J3J1
BMC FRC UP
BIOS WR EN
J2J1
INT DET
RCVRY BOOT
FRB
PSWD CLR
1
CMOS CLR
1
OM08429
†
. If your power supply
continued
27
