Installing a Microprocessor

The server supports up to two Intel
If you are installing two processors, make sure they are the same speed, voltage, and stepping.
E
F
B
10
® ®
II or Pentium III processors (with 100 MHz system bus).
Pentium
A
C
D
B
OM09315
A
OM09328
ISP2150 2U Rack Server Platform Quick Start Guide

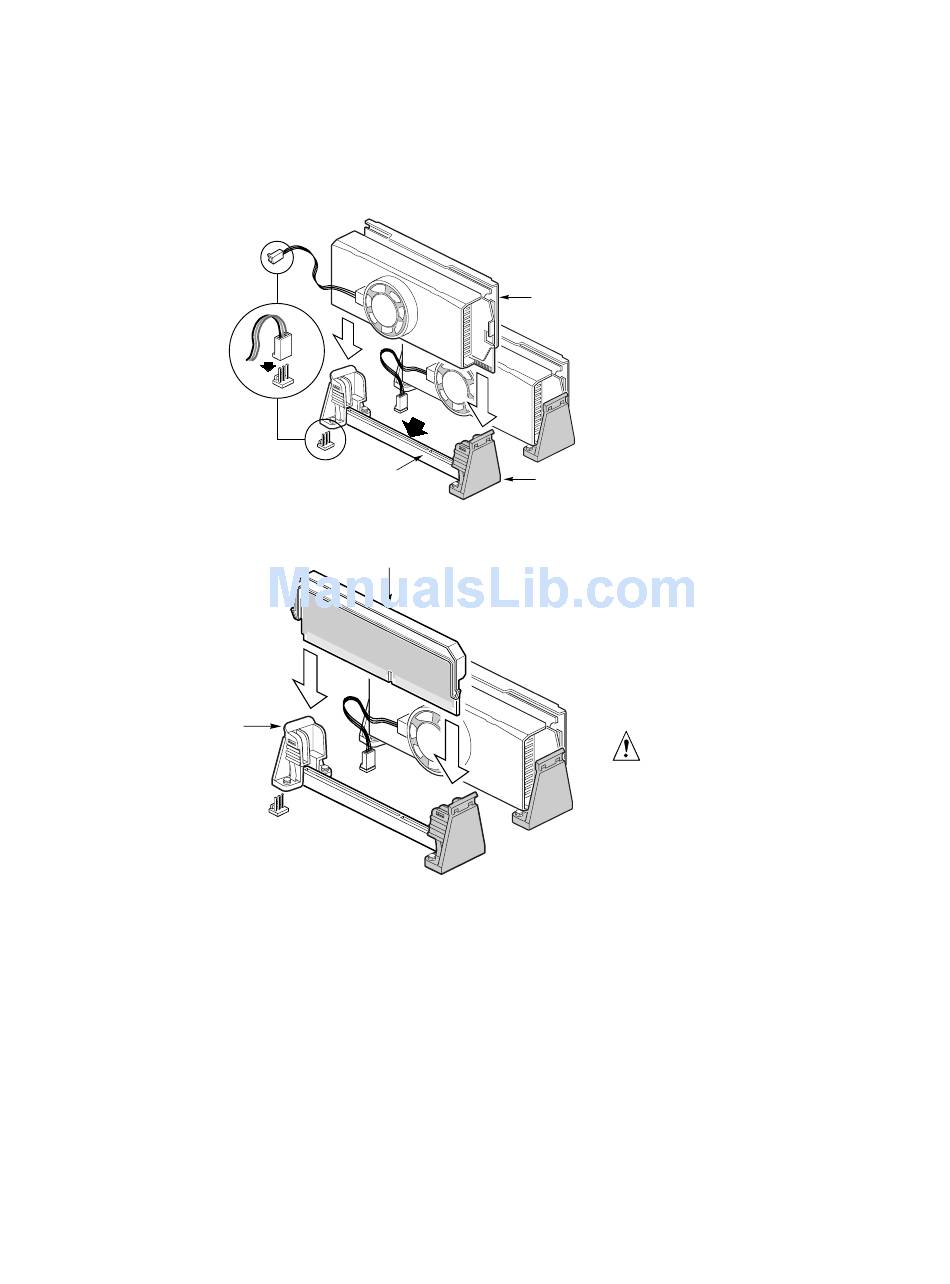

1.
Remove the new processor from its
anti-static package and place it on a
grounded, static free surface or
conductive foam pad.
2.
Attach the small end of the power
cable to the fan connector on the
S.E.C. cartridge, then attach the large
end (B) to the 3-pin connector on the
server board.
3.
Orient the processor so that the heat
sink faces the I/O connectors. Slide
the processor into the retention module.
Push down firmly, with even pressure
on both sides of the top, until the
processor is seated.
4.
To lock in the processor, push the
latches inward on the retention module
until they click into place. The latches
must be secured for proper electrical
connection of the processor.
5.
After you have installed the processor,
you must configure its speed in BIOS
set-up.
CAUTION, Single-Processor
Configurations
If you install only one processor in a
system, it must go in the primary
connector (closest to the DIMM
sockets). With a single-processor
configuration, you must install a
termination board and termination
latch assembly (A) in the empty
secondary connector (B) to ensure
proper operation of your system. A
termination board is provided with
your system.
