Installing a Slim-Line CD-ROM Drive

C
D
16
Your server does not come with an
integrated slim-line CD-ROM
drive. You must purchase one
separately and install it.
1.
Remove the drive from its
protective wrapper, and place
it on an anti-static surface.
A
2.
Set any jumpers and/or
switches on the drive
according to the drive
manufacturer's instructions.
OM09348
3.

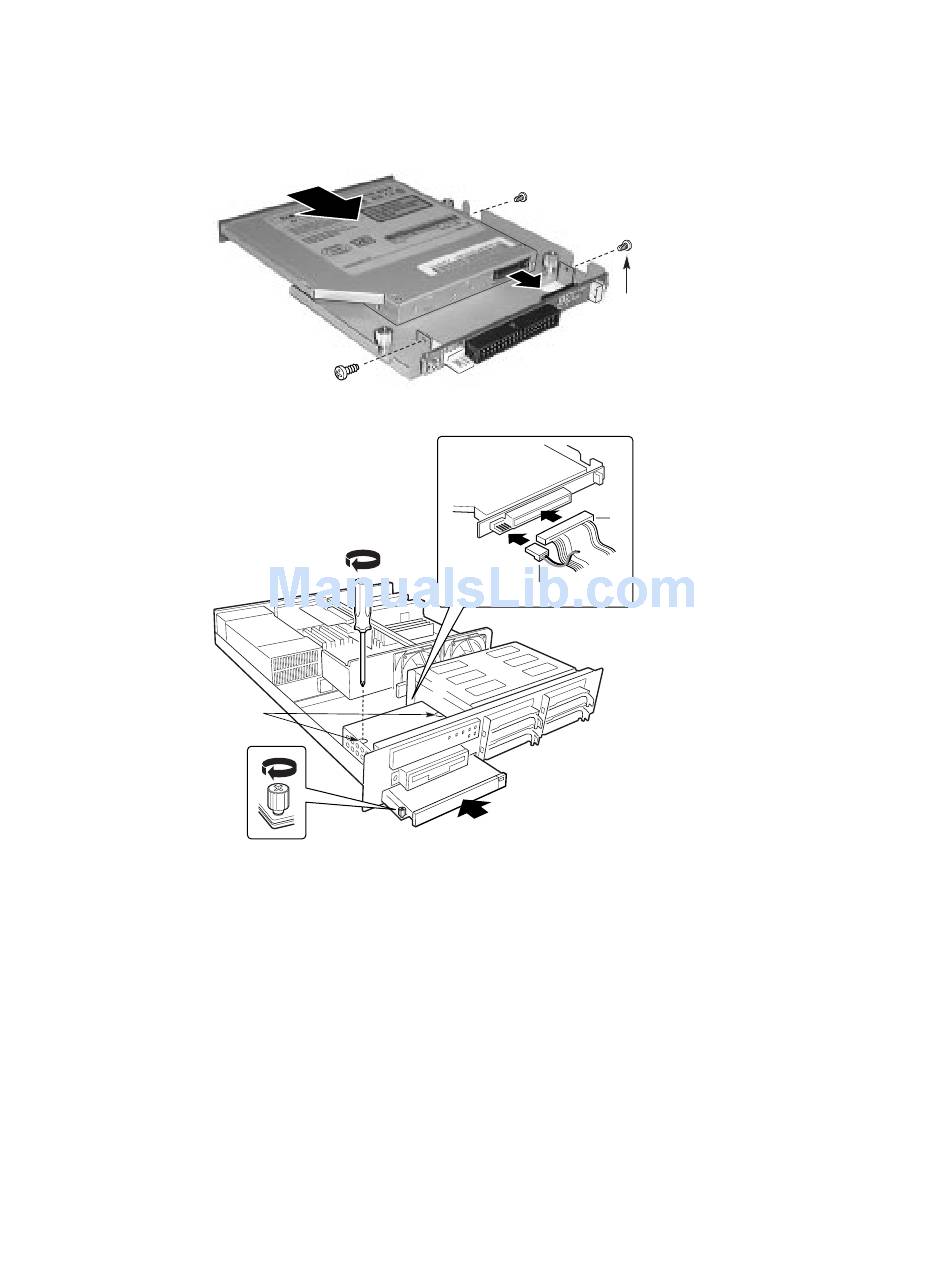

Attach the CD-ROM drive to
the CD tray using the
mounting screws (A) supplied
with the system.
4. Remove the screws that hold
A
the filler panel to the front of
the chassis and slide out the
panel.
B 5.
Slide the slim-line CD tray
into the CD-ROM bay. It is
recommended that you first
remove the diskette drive in
the section "Removing the
Diskette Drive".
6. Connect the CD-ROM IDE
cable (A) and power
(B) cables to the connector at
the back of the CD tray.
7.
Reinstall the diskette drive in
the section "Re-Installing the
Diskette Drive".
OM09319
8. Insert the recessed retention
screws (C) through the access
holes in the top of the drive
bay housing.
9.
Insert the retention screw (D)
on the front of the chassis.
ISP2150 2U Rack Server Platform Quick Start Guide
