4.

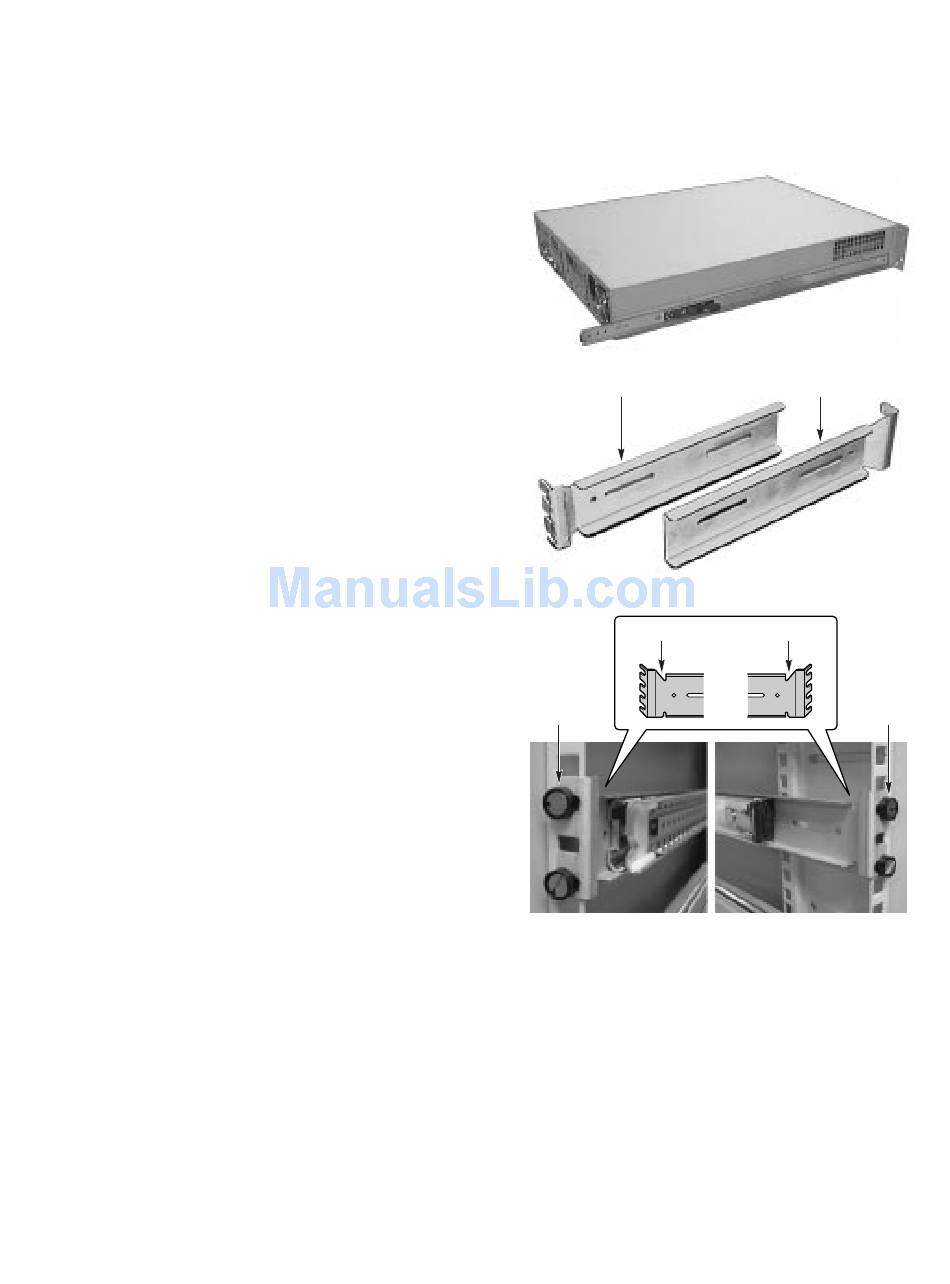

Here is a combination side and rear
view of the chassis after the right
inside rail has been attached.
5.
Locate the front and rear rail brackets
for one side of the rail kit. One pair (A
and B) exists for each side of the
cabinet rack.
6.
Attach all four rail brackets to the
cabinet rack. Be sure that the sharper
angled side of each bracket is facing up
(C). Use eight mounting screws (D)
provided by the manufacturer of the
cabinet rack. In the illustration to the
right, the left photo (A) shows the left-
front bracket attached to the cabinet,
while the right photo (B) shows the
left-rear bracket. (The photo shows the
rails inside the brackets. You should
not have the rails attached inside the
brackets yet.)
22
A
C
D
A
ISP2150 2U Rack Server Platform Quick Start Guide
B
OM09145
C
D
B
OM09142
continued
