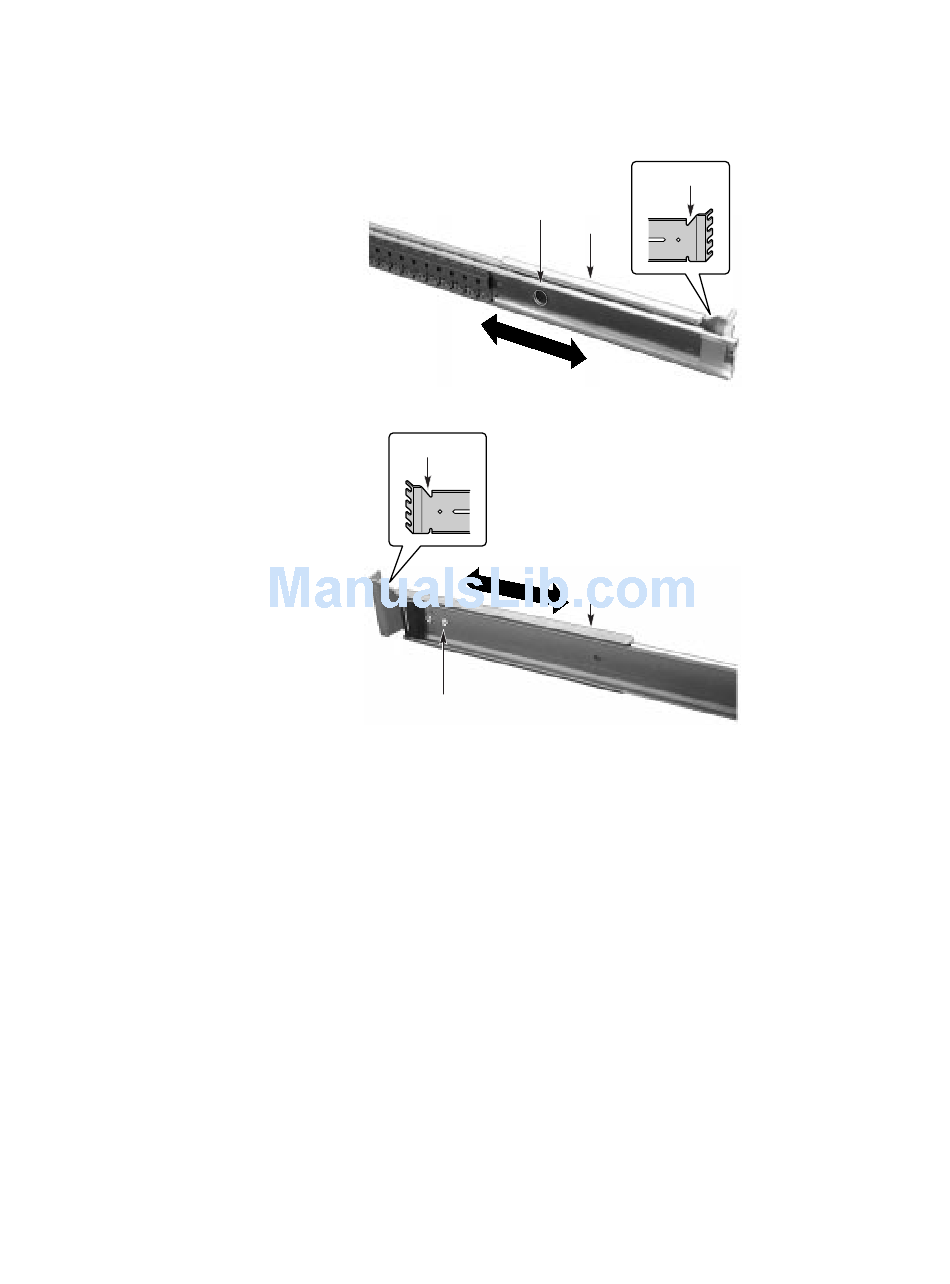

7.
Attach the side rail system's outer
pieces (total of two) to the rail brackets
you installed in step six.
To attach the front part of an outer piece
to a rail bracket, you must reveal the
access hole (A) by sliding the innermost
piece toward the back. Once you see the
access hole, align it with the slot in the
rail bracket such that you can secure the
bolt. Do not tighten the nut and bolt
until you have aligned the rear portion
of the rail system (see the next step).
8. To attach the rear part of the rail system
to the rear rail bracket (A), slide the rail
system within the rail brackets such that
you can place a bolt through the rail's
hole (B) and into the rail bracket's slot.
Loosely tighten the bolt and nut. You
should be able to slide the entire rail
system back and forth in the rail
brackets. When you have centered the
rails in the bracket, tighten the fastening
bolts and nuts.
